General Description
79076 Maximum Ratings
| Ratings | Symbol | Value | Unit |
| Supply Voltage Steady-State Transient Conditions (1) |
VCC(SUS) VCC(PK) |
36 50 |
V |
| Supply Current Transient Conditions (2) Transient Negative Current (tT = 60ms) Transient Negative Current (tT = 1ms) |
IT | 1.0 -100 -1.3 |
A mA A |
| Input Voltage (3) Ref/Dwell, Advance EST, Bypass |
VIN1 VIN2 |
-5.0 to 30 -5.0 to 24 |
V |
| Ref/Dwell Input Current | IIN1 | -20 | mA |
| Dwell ON Sink Current Output ON (Operating) Output ON (t = 10ms) |
ID | 0.3 0.8 |
A |
| Dwell OFF Voltage (4) | VD(OFF) | 5.0 | V |
79076 Features
•Hall or Variable Reluctance Sensor Input
•Ignition Coil Voltage Internally Limited to 375 V
•Coil Current Limiting to 7.5 A
•Output OnTime (Dwell) Control
•Dwell Feedback Control to Sense Coil Variation
•Pb-Free Packaging Designated by Suffix Code EG
•Ignition Coil Voltage Internally Limited to 375 V
•Coil Current Limiting to 7.5 A
•Output OnTime (Dwell) Control
•Dwell Feedback Control to Sense Coil Variation
•Pb-Free Packaging Designated by Suffix Code EG

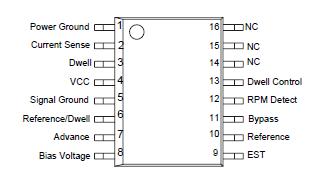

79076 Connection Diagram
