7972VB

Features: • High input impedance provided by fabrication in a CMOS process.• Low power provided by fabrication in a CMOS process.• One of two types of operational amplifier can be selected: inverting (operational amplifier 1) or noninverting operational amplifier 2)• Opera...

product image

7972VB Picture
See larger image
SeekIC No. : 004252865 Detail

7972VB: Features: • High input impedance provided by fabrication in a CMOS process.• Low power provided by fabrication in a CMOS process.• One of two types of operational amplifier can be ...

7972VB Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
7972VB
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High input impedance provided by fabrication in a CMOS process.
• Low power provided by fabrication in a CMOS process.
• One of two types of operational amplifier can be selected: inverting (operational amplifier 1) or noninverting
   operational amplifier 2)
• Operating supply voltage: 4.9 to 5.2 V
• Package: SSOP20
• Operating temperature: Ta = 30 to +70°C


Pinout

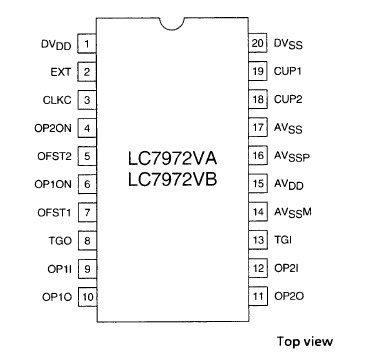

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Ratings
Unit
Maximum supply voltage
VDD max
 VDD

0.3 to +7.0
V
Output voltage
VO
 OP1O, OP2O, TGO
0.3 to VDD+0.3
V
Input voltage
VI1
 OP1ON, OFST1, OP2ON, OFST2, EXT, CLKC, CUP2, CUP1, AVSSP, OP1I, OP2I, TGI
0.3 to VDD+0.3
V
VI2
 AVSSM
3 to +0.3
V
Peak output current
IOP
 OP1O, OP2O, TGO
1 to +1
mA
Average output current
IOA
 OP1O, OP2O, TGO : The current per pin
1 to +1
mA
Allowable power dissipation
Pd max
 SSOP20 : Ta = 30 to +70°C
100
mW
Operating temperature
Topr

30 to +70
°C
Storage temperature
Tstg

55 to +125
°C



Description

The LC7972VA and LC7972VB are dual inverting/noninverting operational amplifier ICs that are fabricated in a CMOS process. These ICs provide a programmable offset correction function and a power saving function for use when the operational amplifier is unused, both of which can be controlled from a microprocessor interface.
