80C86

Features:

* Compatible with NMOS 8086
* Completely Static CMOS Design
   - DC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5MHz (80C86
   - DC . . . . . . . . . . . . . . . . . . . . . . . . . . . .8MHz (80C86-2
* Low Power Operation
   - lCCSB . . . . . . . . . . . . . . . . . . . . . . . . . . . . .500A Max
   - ICCOP . . . . . . . . . . . . . . . . . . . . . . . . . 10mA/MHz Typ
* 1MByte of Direct Memory Addressing Capability
* 24 Operand Addressing Modes
* Bit, Byte, Word and Block Move Operations
* 8-Bit and 16-Bit Signed/Unsigned Arithmetic
   - Binary, or Decimal
   - Multiply and Divide
* Wide Operating Temperature Range
   - C80C86 . . . . . . . . . . . . . . . . . . . . . . . . . .0to +70
   - l80C86 . . . . . . . . . . . . . . . . . . . . . . . . . -40to +85
   - M80C86 . . . . . . . . . . . . . . . . . . . . . . . -55 to +125

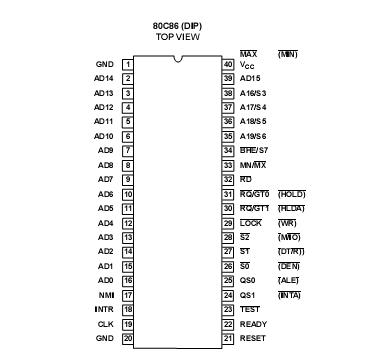

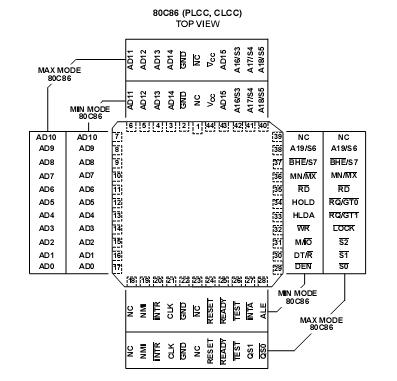

Pinout




Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...+8.0V
Input, Output or I/O Voltage . . . . . . . . . . . ..GND -0.5V to V_CC  +0.5V
Storage Temperature Range . . . . . . . . . . . . . . . . . ...-65 to +150
Junction Temperature
     Ceramic Packages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..+175
      Plastic Packages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +150
Lead Temperature (Soldering 10s). . . . . . . . . . . . . . . . . . . . ..+300
     (Lead tips only for surface mount packages)
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ....Class 1


Description

The Intersil 80C86 high performance 16-bit CMOS CPU is manufactured using a self-aligned silicon gate CMOS pro- cess (Scaled SAJI IV). Two modes of operation, minimum for small systems and maximum for larger applications such as multiprocessing, allow user configuration to achieve the highest performance level. Full TTL compatibility (with the exception of CLOCK) and industry standard operation allow use of existing NMOS 8086 hardware and software designs.
