8115-RC

Common Mode Inductors (Chokes) 1.2mH MIN

product image

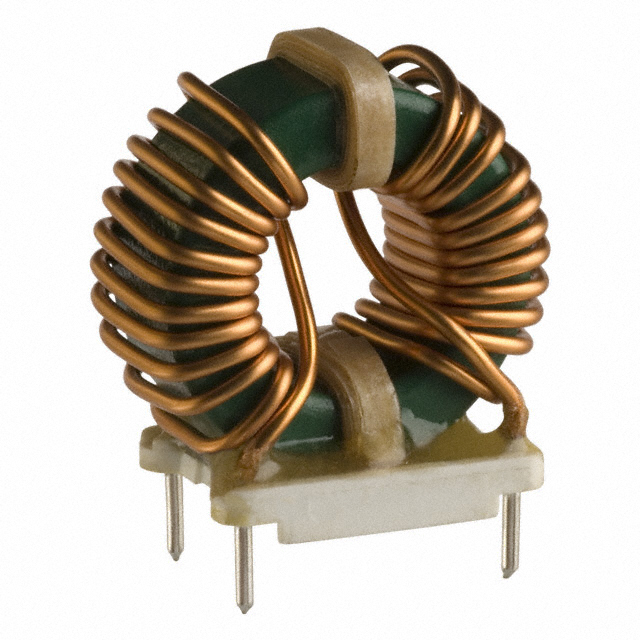

8115-RC Picture
See larger image
SeekIC No. : 001172023 Detail

8115-RC: Common Mode Inductors (Chokes) 1.2mH MIN

8115-RC Data Sheet

floor Price/Ceiling Price

US $ 3.13~3.76 / Piece | Get Latest Price
Part Number:
8115-RC
Mfg:
J.W. Miller
Supply Ability:
5000

Price Break

  • Qty
  • 0~162
  • 162~500
  • 500~1000
  • Unit Price
  • $3.76
  • $3.33
  • $3.13
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Inductance : 1.2 mH Maximum DC Current : 16 Amps
Maximum DC Resistance : 0.006 Ohms Operating Temperature Range : - 55 C to + 105 C

Description

Impedance :
Tolerance :
Self Resonant Frequency :
Q Minimum :
Termination Style :
Package / Case :
Series :
Operating Temperature Range : - 55 C to + 105 C
Maximum DC Resistance : 0.006 Ohms
Maximum DC Current : 16 Amps
Inductance : 1.2 mH


Parameters:

Technical/Catalog Information8115-RC
VendorJW Miller A Bourns Company
CategoryFilters
Inductance1.2mH
Impedance-
DC Resistance (DCR)6.000 mOhm Max
Current 16A
Filter TypeCommon Mode - 2 Line Array
Mounting TypeThrough Hole
Package / Case1.500" L x 0.800" W x 1.530" H (38.10mm x 20.32mm x 38.86mm)
PackagingBulk
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 8115 RC
8115RC
M8910 ND
M8910ND
M8910
