82443BX

Features: * Processor/host bus support - Optimized for Pentium(R) II processor at 100 MHz system bus frequency; Support for 66 MHz - Supports full symmetric Multiprocessor (SMP) Protocol for up to two processors; I/O APIC related buffer management support (WSC# signal) - In-order transaction and ...

product image

82443BX Picture
See larger image
SeekIC No. : 004255570 Detail

82443BX: Features: * Processor/host bus support - Optimized for Pentium(R) II processor at 100 MHz system bus frequency; Support for 66 MHz - Supports full symmetric Multiprocessor (SMP) Protocol for up to ...

82443BX Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
82443BX
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Processor/host bus support
   - Optimized for Pentium(R)  II  processor at 100 MHz system bus  frequency; Support for 66 MHz
   - Supports full symmetric  Multiprocessor (SMP) Protocol for  up to two processors; I/O APIC  related buffer management support  (WSC# signal)
   - In-order transaction and dynamic  deferred transaction support
   - Desktop optimized GTL+ bus driver  technology  (gated GTL+ receivers  for reduced power)
* Integrated DRAM controller
   - 8 to 512 Mbytes or 1GB (with registered DIMMs)
   - Supports up to 4 double-sided DIMMs (8 rows memory)
   - 64-bit data interface with ECC support (SDRAM only)
   - Unbuffered and Registered  SDRAM (Synchronous) DRAM  Support (x-1-1-1 access @ 66 MHz, x-1-1-1 access @ 100 MHz)
   - Enhanced SDRAM Open Page  Architecture Support for  16- and  64-Mbit DRAM devices with 2k, 4k and 8k page sizes
* PCI bus interface
   - PCI Rev. 2.1, 3.3V and 5V, 33MHz interface compliant
   - PCI Parity Generation Support
   - Data streaming support from PCI to  DRAM
   - Delayed Transaction support for PCI-DRAM Reads
   - Supports concurrent CPU, AGP and  PCI transactions to main memory
* AGP interface
   - Supports single AGP compliant  device (AGP-66/133 3.3V device)
   - AGP Specification Rev 1.0 compliant
   - AGP-data/transaction flow optimized arbitration mechanism
   - AGP side-band interface for efficient  request pipelining without  interfering with the data streams
   - AGP-specific data buffering
   - Supports concurrent CPU, AGP and  PCI transactions to main memory
   - AGP high-priority transactions ("expedite") support
* Power Management Functions
   - Stop Clock Grant and Halt special  cycle translation (host to PCI Bus)
   - Mobile and "Deep Green" Desktop support for system suspend/resume (i.e., DRAM and power-on suspend)
   - Dynamic power down of idle DRAM  rows
   - SDRAM self-refresh power down support in suspend mode
   - Independent, internal dynamic clock gating reduces average power  dissipation
   - Static STOP CLOCK support
   - Power-on Suspend mode
   - Suspend to DRAM
   - ACPI compliant power management
* Packaging/Voltage
   -492 Pin BGA
   - 3.3V core and mixed 3.3V and GTL I/O
* Supporting I/O Bridge
   - System Management Bus (SMB) with support for DIMM Serial  Presence Detect (SPD)
   - PCI-ISA Bridge (PIIX4E)
   - Power Management Support
   - 3.3V core and mixed 5V, 3.3V I/O and interface to the 2.5V CPU signals via open-drain output buffers


Pinout

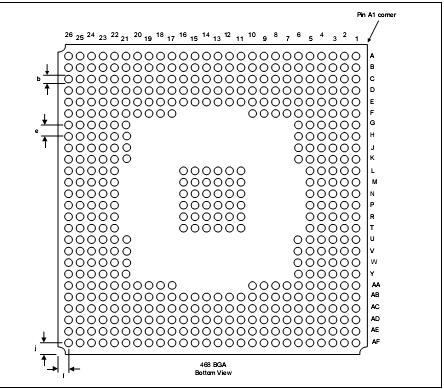

Connection Diagram
