General Description
82C82 General Description
The Intersil 82C82 is a high performance CMOS Octal Latching Buffer manufactured using a self-aligned silicon gate CMOS process (Scaled SAJI IV). The 82C82 provides an eight-bit parallel latch/buffer in a 20 pin package. The active high strobe (STB) input allows transparent transfer of data and latches data on the negative transition of this sig- nal. The active low output enable (OE) permits simple inter-face to state-of-the-art microprocessor systems.
82C82 Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+8.0V
Input, Output or I/O Voltage . . . . . . . . . . . .GND-0.5V to VCC +0.5V
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Class 1
Input, Output or I/O Voltage . . . . . . . . . . . .GND-0.5V to VCC +0.5V
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Class 1
82C82 Features
* Full Eight-Bit Parallel Latching Buffer
* Bipolar 8282 Compatible
* Three-State Noninverting Outputs
* Propagation Delay . . . . . . . . . . . . . . . . . . . . . 35ns Max.
* Gated Inputs:
- Reduce Operating Power
- Eliminate the Need for Pull-Up Resistors
* Single 5V Power Supply
* Low Power Operation . . . . . . . . . . . . . . . ICCSB = 10A
* Operating Temperature Ranges
- C82C82 . . . . . . . . . . . . . . . . . . . . . . . . . .0 to +70
- I82C82 . . . . . . . . . . . . . . . . . . . . . . . . . -40 to +85
- M82C82 . . . . . . . . . . . . . . . . . . . . . . . -55 to +125
* Bipolar 8282 Compatible
* Three-State Noninverting Outputs
* Propagation Delay . . . . . . . . . . . . . . . . . . . . . 35ns Max.
* Gated Inputs:
- Reduce Operating Power
- Eliminate the Need for Pull-Up Resistors
* Single 5V Power Supply
* Low Power Operation . . . . . . . . . . . . . . . ICCSB = 10A
* Operating Temperature Ranges
- C82C82 . . . . . . . . . . . . . . . . . . . . . . . . . .0 to +70
- I82C82 . . . . . . . . . . . . . . . . . . . . . . . . . -40 to +85
- M82C82 . . . . . . . . . . . . . . . . . . . . . . . -55 to +125

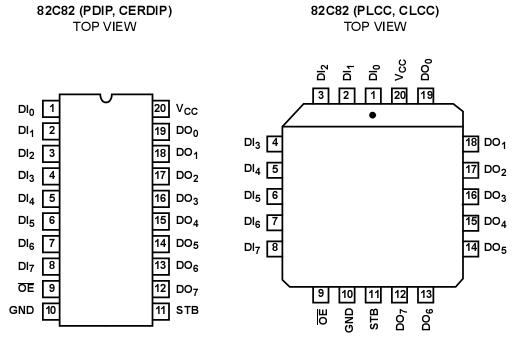

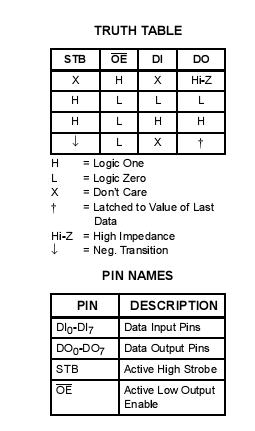

82C82 Connection Diagram
82C82
PDF/DataSheet Download
- Datasheet: 82C82
- File Size: 105696 KB
- Manufacturer: INTERSIL [Intersil Corporation]
- Click here to Download
