Features:

• Full Eight Bit Bi-Directional Bus Interface
• Industry Standard 8286 Compatible Pinout
• High Drive Capability
- B Side IOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20mA
- A Side IOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12mA
• Three-State Outputs
• Propagation Delay . . . . . . . . . . . . . . . . . . . . . 35ns Max.
• Gated Inputs
- Reduce Operating Power
- Eliminate the Need for Pull-Up Resistors
• Single 5V Power Supply
• Low Power Operation . . . . . . . . . . . . . . . ICCSB = 10A
• Operating Temperature Range
- C82C86H . . . . . . . . . . . . . . . . . . . . . . . . . 0oC to +70oC
- I82C86H . . . . . . . . . . . . . . . . . . . . . . . . -40oC to +85oC
- M82C86H . . . . . . . . . . . . . . . . . . . . . . -55oC to +125oC



Pinout

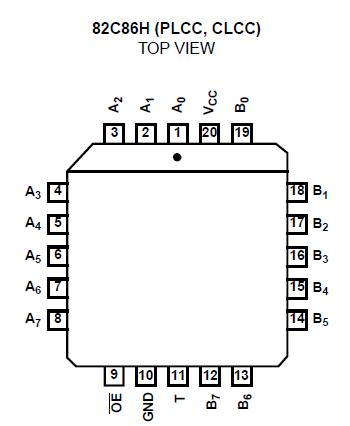

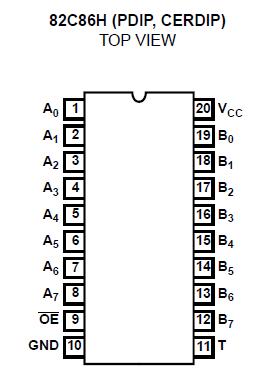

  Connection Diagram  Connection Diagram


Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+8.0V
Input, Output or I/O Voltage . . . . . . . . . . . .GND -0.5V to VCC +0.5V
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Class 1



Description

The Intersil 82C86H is a high performance CMOS Octal Transceiver manufactured using a self-aligned silicon gate CMOS process (Scaled SAJI IV). The 82C86H provides a full eight-bit bi-directional bus interface in a 20 lead package. The Transmit (T) control determines the data direction. The active low output enable (OE) permits simple interface to the 80C86, 80C88 and other microprocessors. The 82C86H has gated inputs, eliminating the need for pull-up/pull-down resistors and reducing overall system operating power dissipation.
