Product Details

Description

Features:

*Integrated sound controller compatible with:
- Sound Blaster Pro^(TM)  - Ad Lib^(TM)
-Microsoft^(R)   Windows^(TM) Sound System^(TM)* Microsoft^(R) PC-97 compliant
* Built-in high-quality 22 voice, 52 operator, OPTiFM^(TM)music synthesizer with enhanced bass
* Built-in 7-channel mixer: five stereo, two mono
* Built-in 16-bit sigma-delta stereo codec
* ISA Plug and Play Specification 1.0a compatible, supports a maximum of six logical devices:
   - Sound Blaster Pro, Windows Sound System, FM synthesis
   - MPU-401 MIDI interface
   - CD-ROM interface
   -Joystick/game port
   - Modem interface
   - 82C931 control
* Supports external serial EEPROM (optional)
* External modem chipset interface
* Full duplex operation: record and playback simultaneously using two 8- or 16-bit DMA channels
* Supports IMA ADPCM, -law, A-law decompression
* 8- or 16-bit stereo sound data up to 48KHz stereo
* Supports 16-bit Type F DMA playback, accelerates telephony-audio applications
*Digital joystick interface support, improves responsiveness (Microsoft SideWinder^(TM))
*I² S serial interface supports Zoom Video Port, wavetable controller and modem chipset
* DirectSound^(TM) interface support
* Power-down modes
* Silence mode to turn-off all audio functions
* Hardware and software volume control via push-button interface
* 100-pin PQFP (Plastic Quad Flat Pack)
* 100-pin TQFP (Thin Quad Flat Pack)

Pinout

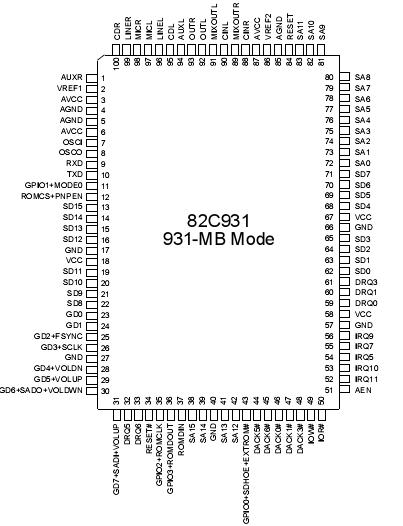

Connection Diagram

Specifications

Symbol	Parameter	Min	Max	Unit
VCC	Supply Voltage	4.5	5.5	V
AVCC	Analog Supply Voltage	4.75	5.25	V
VIN	Input Voltage	-0.5	VCC + 0.5	V
VOUT	Output Voltage	-0.5	VCC + 0.5	V
TOP	Operating Temperature	0	70
TSTG	Storage Temperature	-40	125
ESD*	ESD Tolerance (Human Body Model MIL883C, 3015.7, Notice 8)		1000	V

* ESD senstive device. Electrostatic charges as high as 4000V readily accumulate on the human body and test equipment and can discharge without detection. Although the 82C931 features ESD protection circuitry, perma-nent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD pre-cautions are recommended to avoid performance degradation or loss of functionality.
