84C84X

Features:

` 8-bit CPU, ROM, RAM, I/O in a single 42 leads shrink DIL package
` Over 80 instructions all of 1 or 2 cycles
` 29 quasi-bidirectional standard I/O port lines
` Configuration of I/O lines individually selected by mask
` External interrupt INT/T0
` 2 direct testable inputs T0 and T1
` 8-bit programmable timer/event counter
` 3 single level vectored interrupts (external, timer/counter, I²C-bus)
` Power-on-reset and low voltage detector
` Single power supply
` 2 power reduction modes: Idle and Stop
` Operating temperature range: -20 to +70
` Silicon gate CMOS fabrication process (SAC2).
` Four programmable display dot sizes
` Half dot character rounding
` Seven colours for each character
` One 14-bit PWM output for VST
` Five 6-bit PWM outputs for analog controls
` Eight port lines with 10 mA LED drive capability
` 18 general purpose bidirectional I/O lines plus 11 function-combined I/O lines
` 2 direct testable lines
` Programmable VSYNCN and HSYNCN input polarity
` RC oscillator for OSD function.


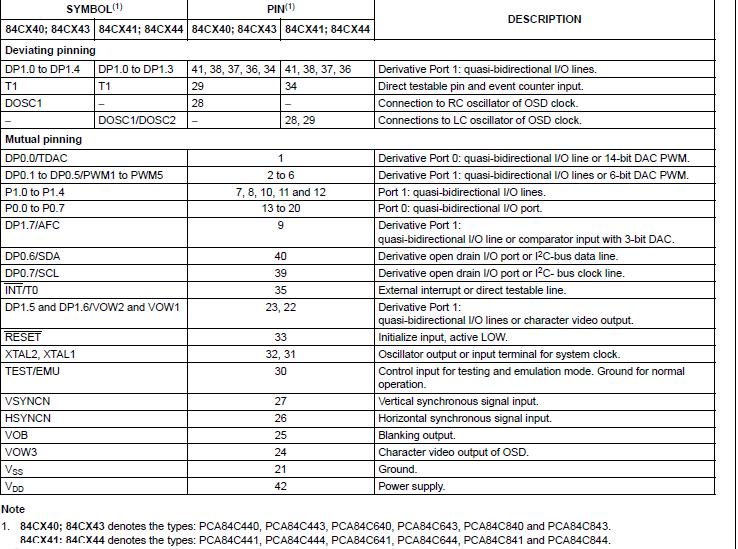

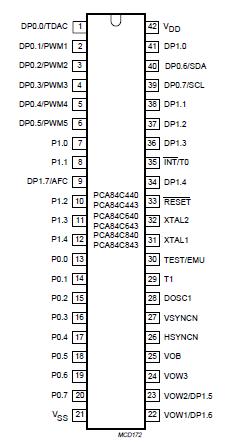

Pinout




Specifications

SYMBOL	PARAMETER	MIN.	MAX.	UNIT
VDD	supply voltage	-0.3	+7.0	V
VI	input voltage (all inputs)	-0.3	VDD + 0.3	V
IOH	maximum source current for all port lines	-	-10	mA
IOL	maximum sink current for all port lines	-	-30	mA
Ptot	total power dissipation	-	900	mW
Tstg	storage temperature	-55	+125
Tamb	operating ambient temperature (for all devices)	-20	+70

Description

The 84C44X; 84C64X; 84C84X denotes the types:· PCA84C440; 84C441; 84C443; 84C444· PCA84C640; 84C641; 84C643; 84C64· PCA84C840; 84C841; 84C843; 84C844. which are 8-bit microcontrollers with On Screen Display (OSD) and Voltage Synthesized Tuning (VST) functions. All are members of the 84CXXX microcontroller family.

There are two oscillator types for the OSD function in the various types, i.e.,· RC oscillator: PCA84C440; 84C443; 84C640; 84C643;
84C840; 84C843· LC oscillator: PCA84C441; 84C444; 84C641; 84C644;84C841; 84C844.
