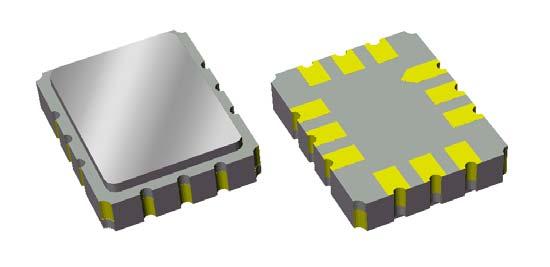

See larger image

SeekIC No. : 001684674 Detail

855094: Signal Conditioning 325MHz BW 10MHz Filter

855094 Data Sheet

Get Latest Price

Part Number:: 855094
Mfg:: TriQuint Semiconductor
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

8550 evaluate
DescriptionThe 8550 is a PNP epitaxial silicon planar transistor designed for use in the audio out...
8550000100 evaluate
Fuseholders, Clips, & Hardware ACS 5X20MM IP CAP
85500001009 evaluate
US $.56 - .91 / Piece

Fuseholders, Clips, & Hardware ACS 5X20MM IP CAP

Product Details

Quick Details

Product :	SAW Filters	Frequency :	325 MHz
Frequency Range :	320 MHz to 330 MHz	Impedance :	50 Ohms
Termination Style :	SMD/SMT	Package / Case :	7 mm x 5.5 mm
Operating Temperature Range :	- 10 C to + 60 C	Packaging :	Reel

Description

Voltage Rating :
Bandwidth :
Impedance : 50 Ohms
Termination Style : SMD/SMT
Packaging : Reel
Product : SAW Filters
Operating Temperature Range : - 10 C to + 60 C
Package / Case : 7 mm x 5.5 mm
Frequency : 325 MHz
Frequency Range : 320 MHz to 330 MHz

Features:

• For broadband applications
• Typical 3 dB bandwidth of 10 MHz
• Single-ended or differential operation
• Ceramic Surface Mount Package (SMP)
• Small size

Pinout

Connection Diagram

Specifications

Parameter	Symbol	Minimum	Typical	Maximum	Unit
Operating Temperature Range	T	-10	+25	+60
Storage Temperature Range	T_stg	-40	-	+85

Parameters:

Technical/Catalog Information	855094
Vendor	Triquint Semiconductor Inc
Category	Filters
Filter Type	Bandpass
Packaging	Tape & Reel (TR)
Package / Case	0.276" L x 0.217" W x 0.064" H (7.01mm x 5.51mm x 1.63mm)
Applications	General Purpose
Frequency	325MHz Center
Insertion Loss	9.6dB
Bandwidth	10MHz
Mounting Type	Surface Mount
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	855094 855094
