A26E001A
-
Suppliers
DataSheet
General Description
A26E001A Maximum Ratings
VCC to GND . . . . . . . . . . . . . . . . . . . . . . . -0.5V to +4.6V
IN, IN/OUT Volt to GND . . . . . . . . . . -0.5V to VCC + 0.5V
Operating Temperature, Topr . . . . . . .-25° C to +85° C
Storage Temperature, Tstg . . . . . . . -55° C to +125° C
Power Dissipation, PT . . . . . . . . . . . . . . . . . . . . . . . 0.7W
Soldering Temp. & Time . . . . . . . . . . . . . .260° C, 10 sec
IN, IN/OUT Volt to GND . . . . . . . . . . -0.5V to VCC + 0.5V
Operating Temperature, Topr . . . . . . .-25° C to +85° C
Storage Temperature, Tstg . . . . . . . -55° C to +125° C
Power Dissipation, PT . . . . . . . . . . . . . . . . . . . . . . . 0.7W
Soldering Temp. & Time . . . . . . . . . . . . . .260° C, 10 sec
A26E001A Features
Power supply range: 1.8V to 3.3V
Access time: 450 ns (max.)
Current:
Low power version: Operating: 4mA (max.)
Standby: 10mA (max.)
Extended operating temperature range: -25° C to 85°
Full static operation, no clock or refreshing required
All inputs and outputs are CMOS compatible
Common I/O using three-state output
Data retention voltage: 1.6V (min.)
Available in 32-pin TSOP and sTSOP packages

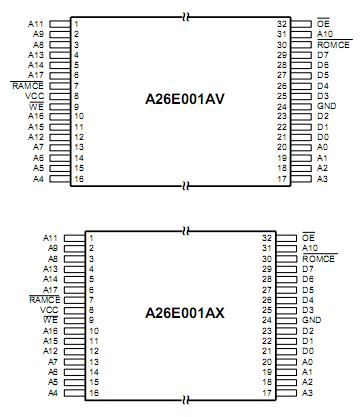

A26E001A Connection Diagram
A26E001A
