Product Details

Description



Features:


  262,144 X 8 bit organization
  Programming voltage: 12.25V
  Access time: 55/70 ns (max.)
   Current:  Operating:  30mA  (max.) at 5MHz
   Standby:  100µA (max.)
  All inputs and outputs are directly TTL-compatible
  Available in 32-pin DIP and 32-pin PLCC packages

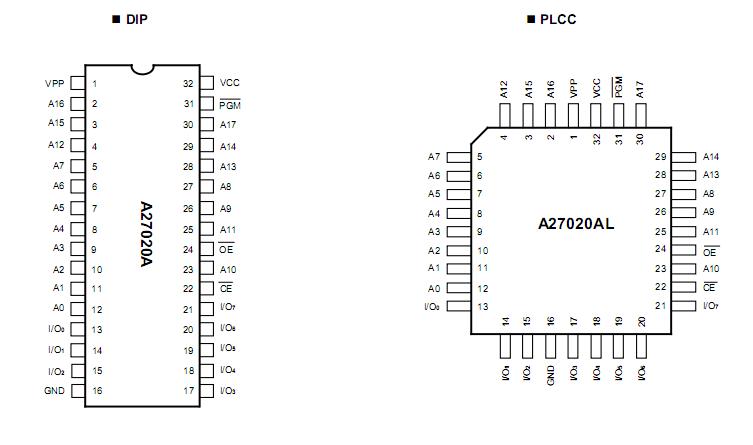

Pinout

Connection Diagram


Specifications

Ambient Operating Temperature (TA) . . ..-10°C to +85°C
Storage Temperature Plastic Package (TSTG) . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . ... . . .  -55°C to 125°C
Applied Input Voltage (VI):
  All Pins Except A9, VPP and VCC . . . . . . . . . . . . . . .
  . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . -0.6V to VCC + 0.6V
  A9, VPP . . . . . . . . . . . . . . . . . . . . . . . .  . . . .0.6V to 12.5V
  VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.6V to 7.0V
Output Voltage (VO) . . . . . . . . . . . .  -0.6V to 6.0V (Note 1)
