Part Number: A615308
Description: The A615308 is a high-speed 262,144-bit static random access memory organized as 32,768 words by 8 bit...
- Table of contents:
A615308
-
Suppliers
DataSheet
General Description
A615308 General Description
The A615308 is a high-speed 262,144-bit static random access memory organized as 32,768 words by 8 bits and operates on a single 5V power supply. It is built using high performance CMOS process.
Inputs and three-state outputs are TTL compatible and allow for direct interfacing with common system bus structures.
Minimum standby power is drawn by this device when CE is at a high level, independent of the other input levels.
Data retention is guaranteed at a power supply voltage as low as 2V.
A615308 Maximum Ratings
VCC to GND . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to +7V
IN, IN/OUT Volt to GND . . . . . . . . . . -0.5V to VCC +0.5V
Operating Temperature, Topr . . . . . . . . 0°C to +70°C
Storage Temperature, Tstg . . . . . . .. -55°C to +125°C
Temperature Under Bias, Tbias . . . . . -10°C to +85°C
Power Dissipation, PT . . . . . . . . . . . . . . . . . . . . . . 1.0W
IN, IN/OUT Volt to GND . . . . . . . . . . -0.5V to VCC +0.5V
Operating Temperature, Topr . . . . . . . . 0°C to +70°C
Storage Temperature, Tstg . . . . . . .. -55°C to +125°C
Temperature Under Bias, Tbias . . . . . -10°C to +85°C
Power Dissipation, PT . . . . . . . . . . . . . . . . . . . . . . 1.0W
A615308 Features
·Single +5V power supply
·Access times: 12 ns (max.)
·Current: Operating: 150mA (max.)
Standby: 12mA (max.)
·Full static operation, no clock or refreshing required
·All inputs and outputs are directly TTL compatible
·Common I/O using three-state output
·Data retention voltage: 2V (min.)
·Available in 28-pin SOJ and TSOP packages
·Access times: 12 ns (max.)
·Current: Operating: 150mA (max.)
Standby: 12mA (max.)
·Full static operation, no clock or refreshing required
·All inputs and outputs are directly TTL compatible
·Common I/O using three-state output
·Data retention voltage: 2V (min.)
·Available in 28-pin SOJ and TSOP packages

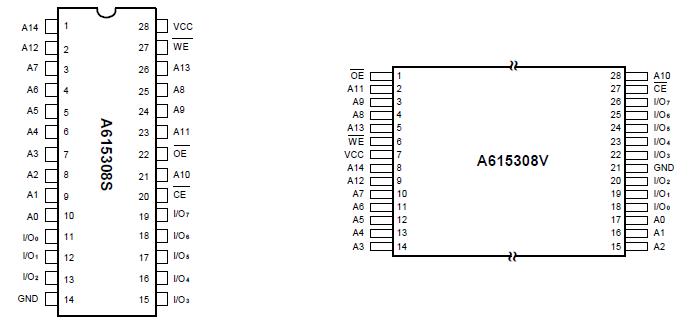

A615308 Connection Diagram
A615308
