A63P73361

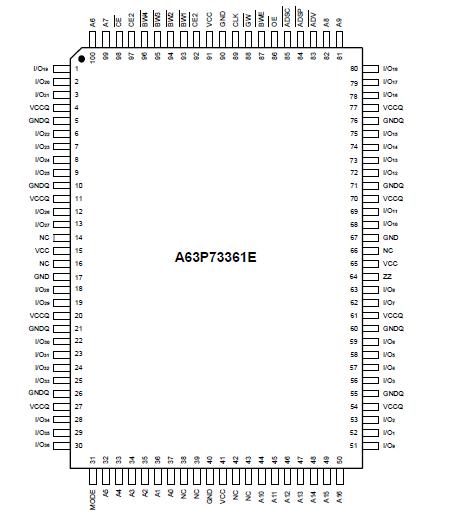

The positive edge triggered single clock input (CLK) controls all synchronous inputs passing through the registers. Synchronous inputs include all addresses (A0 - A16), all data inputs (I/O1 - I/O36), active LOW chip enable ( CE ), two additional chip enables (CE2, CE2 ), burst control inputs ( ADSC , ADSP , ADV ), byte write enables ( BWE , BW1 , BW2 , BW3 , BW4 ) and Global Write (GW ). Asynchronous inputs include output enable ( OE ), clock (CLK), BURST mode (MODE) and SLEEP mode (ZZ).

Burst operations can be initiated with either the address status processor ( ADSP ) or address status controller ( ADSC ) input pin. Subsequent burst sequence burst addresses can be internally generated by the A63P7336 and controlled by the burst advance ( ADV ) pin. Write cycles are internally self-timed and synchronous with the rising edge of the clock (CLK).

This feature simplifies the write interface. Individual Byte enables allow individual bytes to be written. BW1 controls I/O1 - I/O9, BW2 controls I/O10 - I/O18, BW3 controls I/O19 - I/O27, and BW4 controls I/O28 - I/O36, all on the condition thatBWE is LOW. GW LOW causes all bytes to be written.
