Purchase A83516L, In-stock A83516L From SeekIC.
Part Number: A83516L
Description: The AMIC A83516 is a high-performance 8-bit microcontroller. It is compatible with the industry standa...
- Table of contents:
A83516L
-
Suppliers
DataSheet
General Description
A83516L General Description
The AMIC A83516 is a high-performance 8-bit microcontroller. It is compatible with the industry standard 80C52 microcontroller series.
The A83516 contains a 256B RAM, 64KB X 8 ROM, four 8-bit bidirectional parallel ports, three 16-bit timer/counters, a serial port and six interrupt sources with two priority levels.
The A83516 has two power reduction modes, idle mode and power-down mode. It supports 64KB external data memory.
A83516L Maximum Ratings
VCC to GND . . . . . . . . . . . . . . . . . . . . . 0.3V to +7.0V
IN, IN/OUT Volt to GND . . . . . . . . . -0.5V to VCC + 0.5V
Operating Temperature, Topr . . . . . .-25°C to + 85°C
Storage Temperature, Tstg . . . . . . . -55°C to + 125°C
Power Dissipation1*, Pr . . . . . . . . . . . . . . . . . . . . . . 1W
Soldering Temperature & Time . . . . . . . . 260°C, 10sec
1* : Operating frequency is 40MHZ
IN, IN/OUT Volt to GND . . . . . . . . . -0.5V to VCC + 0.5V
Operating Temperature, Topr . . . . . .-25°C to + 85°C
Storage Temperature, Tstg . . . . . . . -55°C to + 125°C
Power Dissipation1*, Pr . . . . . . . . . . . . . . . . . . . . . . 1W
Soldering Temperature & Time . . . . . . . . 260°C, 10sec
1* : Operating frequency is 40MHZ
A83516L Features
· 8-bit CMOS microcontroller
· Fully static design with power saving idle mode and power down mode
· Low standby current at full supply voltage
· Versions for 12/24/40MHZ operating frequency
· On chip 256B RAM
· On chip 64KB X 8 MASK-ROM program memory
· Four 8-bit bidirectional ports
· Three 16-bit Timers/Counters (Timer 2 with up/down counter feature)
· One full duplex serial port
· Boolean processor
· Six interrupt sources, two priority levels
· Available in 40-pin P-DIP and 44-pin PLCC packages
· Fully static design with power saving idle mode and power down mode
· Low standby current at full supply voltage
· Versions for 12/24/40MHZ operating frequency
· On chip 256B RAM
· On chip 64KB X 8 MASK-ROM program memory
· Four 8-bit bidirectional ports
· Three 16-bit Timers/Counters (Timer 2 with up/down counter feature)
· One full duplex serial port
· Boolean processor
· Six interrupt sources, two priority levels
· Available in 40-pin P-DIP and 44-pin PLCC packages

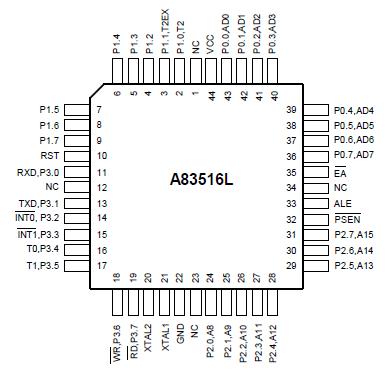

A83516L Connection Diagram
A83516L-12
