General Description
AA110-85 General Description
The AA110-85 is a 5 bit, single positive control GaAs IC FET digital attenuator with driver.It is particularly suited at IF frequencies where high attenuation accuracy, low insertion loss and low intermodulation products are required.Typical applications include base station, wireless data, broadband and wireless local loop gain control circuits.
AA110-85 Maximum Ratings
RF Input Power.............2 W > 500 MHz 0/8 V0.75 W @ 50 MHz 0/8 V
Supply Voltage.............................................................................+8 V
Control Voltage1.................................................................-0.2 V, +8 V
Operating Temperature............................................-40°C to +85°C
Storage Temperature..............................................-65°C to +150°C JC ........................................................................................85°C/W
Supply Voltage.............................................................................+8 V
Control Voltage1.................................................................-0.2 V, +8 V
Operating Temperature............................................-40°C to +85°C
Storage Temperature..............................................-65°C to +150°C JC ........................................................................................85°C/W
AA110-85 Features
Attenuation 1 dB Steps to 31 dB With High Accuracy
Single Positive Control (+5 V) for Each Bit
Low DC Power ConsumptionCMOS Integrated Silicon Driver
Designed for Use at IF Frequencies
Single Positive Control (+5 V) for Each Bit
Low DC Power ConsumptionCMOS Integrated Silicon Driver
Designed for Use at IF Frequencies

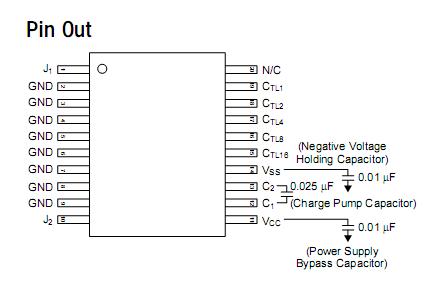

AA110-85 Connection Diagram
AA110-85
PDF/DataSheet Download
