Features: Low Dropout - 200mV at 150mA
Guaranteed 150mAOutput
High accuracy ±1.5
70AQuiescent Curren
Fast line and load transient response
High speed device turn-on and shutdown
High Power Supply Ripple Rejection
Low self noise
Short circuit protection
Over-Temperature protection
Uses Low ESRceramic capacitors
Output noise reduction bypass capacitor
Shutdown mode for longer battery life
Low temperature coefficient
16 Factory programmed output voltages
SOT23 5-pin or SC70JW 8-pin packageApplicationCellular Phones
Notebook Computers
Portable Communication Devices
Personal Portable Electronics

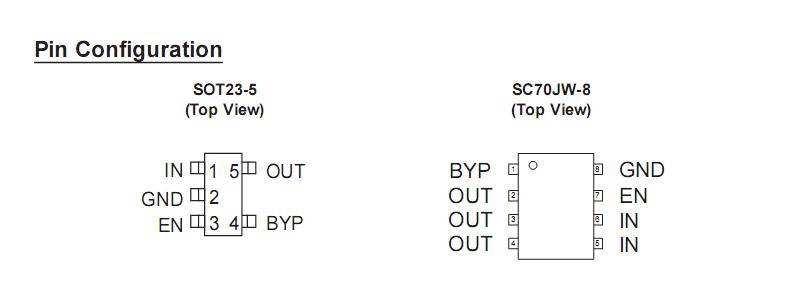

Digital CamerasPinout
Specifications
| Symbol |
Description
|
Value |
Units |
VIN
|
Input Voltage, POK |
6 |
V |
IOUT
|
DC Output Current |
P D/(VIN -V O) |
mA |
TJ
|
Operating Junction Temperature Range |
-40 to 150 |
°C |
DescriptionThe AAT3218 MicroPower™ Low Dropout Linear Regulator is ideally suited for portable applications where very fast transient response, extended battery life and small size are critical. The AAT3218 has been specifically designed for high speed turn on and turn off performance, fast transient response, good power supply ripple rejection (PSRR) and is reason- ably low noise, making it ideal for powering sensitive circuits with fast switching requirements.
Other features include low quiescent current, typical- ly 70A, and low dropout voltage which is typicall less than 200mV at the maximum output current level of 150mA. The device is output short circuit protect- ed and has a thermal shutdown circuit for additional protection under extreme operating conditions.
span id="lblDescription">
The AAT3218 MicroPower Low Dropout Linear Regulator is ideally suited for portable applications where very fast transient response, extended battery life, and small size are critical. The AAT3218 has been specifically designed for high-speed turn-on and turn-off performance, fast transient response, and good power supply ripple rejection (PSRR), and is reasonably low noise, making it ideal for powering sensitive circuits with fast switching requirements. Other features include low quiescent current (typically 70A) and low dropout voltage, typically less than 200mV at the maximum output current level of 150mA. The device is output short circuit protected and has a thermal shutdown circuit for additional protection under extreme operating conditions. The AAT3218 also features a low-power shutdown mode for extended battery life. A reference bypass pin has been provided to improve PSRR performance and output noise, by connecting a small external capacitor from the reference output to ground. The AAT3218 is available in a space-saving 5-pin SOT23 or an 8-pin SC70JW package in 16 factory-programmed voltages.
AAT3218 Data Sheet
