Description: The AAT4250 SmartSwitch™ is a member of AATI's Application Specific Power MOSFET™ (ASPM...
- Table of contents:
AAT4250
-
Suppliers
DataSheet
General Description
AAT4250 General Description
The AAT4250 SmartSwitch™ is a member of AATI's Application Specific Power MOSFET™ (ASPM™) product family. It is a Slew Rate Controlled P-channel MOSFET power switch designed for high-side load-switching applications. This switch operates with an input voltage range from 1.8V to 5.5V, making it ideal for 2.5V, 3.3V or 5V systems. The part features 1.5ms turn on and 10µs turn off time. The AAT4250 has an under voltage lock out which turns off the switch when an under-voltage condition exists. Input logic levels are TTL compatible. The quiescent supply current is very low, typically 2µA. In shutdown mode, the supply current is typically reduced to 0.1µA or less.
The AAT4250 is available in a 5-pin SOT23 and 8-pin SC70JW specified over -40 to 85°C.
AAT4250 Maximum Ratings
| Symbol | Description | Value | Units | |
| VIN | IN to GND | -0.3 to 6 | V | |
| VON | ON/OFF to GND | -0.3 to 6 | V | |
| VOUT | OUT to GND | -0.3 to VIN + 0.3 | V | |
| IMAX | Maximum Continuous Switch Current | 1.7 | A | |
| IDM | Maximum Pulsed Current | IN 2.5V | 4 | A |
| IN <2.5V | 2 | A | ||
| TJ | Operating Junction Temperature Range | -40 to 150 | °C | |
| TLEAD | Maximum Soldering Temperature (at Leads) | 300 | °C | |
| VESD | ESD Rating1 - HBM | 5000 | V | |
AAT4250 Features
• 1.8V to 5.5V Input voltage range
• 120mΩ (5V) typical RDS(ON)
• Low quiescent current
• Typical 2µA
• Typical 0.1µA with Enable off
• Only 2.0V needed for ON/ OFF Control
• Temperature range -40º to 85°C
• 5kV ESD rating
• 5-pin SOT23 or SC70JW-8 package
• 120mΩ (5V) typical RDS(ON)
• Low quiescent current
• Typical 2µA
• Typical 0.1µA with Enable off
• Only 2.0V needed for ON/ OFF Control
• Temperature range -40º to 85°C
• 5kV ESD rating
• 5-pin SOT23 or SC70JW-8 package
AAT4250 Typical Application
• Hot swap supplies
• Notebook computers
• Personal communication devices
• Notebook computers
• Personal communication devices

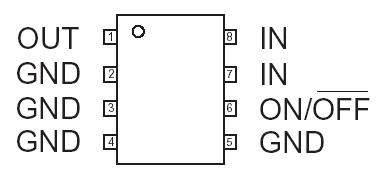

AAT4250 Connection Diagram
AAT4250
PDF/DataSheet Download
- Datasheet: AAT4250
- File Size: 236092 KB
- Manufacturer:
- Click here to Download
