Part Number: AC23C16200B
Description: The AC23C16200B high performance read only memory is organuzed either as 2,097,152*8bit(byte mode) or ...
- Table of contents:
AC23C16200B
-
Suppliers
DataSheet
General Description
AC23C16200B General Description
The AC23C16200B high performance read only memory is organuzed either as 2,097,152*8bit(byte mode) or as 1,048,576*16bit(word mode) followed by BHE mode select.The low power feature allows the battery operation. The large size of 16M bit memory density is ideal for charracter generator,data or program memory in micro-processor application.The AC23C16200B is packsged 44SOP,48TSOP-I and 44tsop-II
AC23C16200B Maximum Ratings
| Symbol | Parameter | Rating | Unit |
| TA | Ambient Operating Temperature | -10 ~ 80 | |
| TSTG | Storage Temperature | -65 ~ 150 | |
| VCC | Supply Voltage to Ground Potential | -0.5 ~ 7.0 | V |
| VOUT | Output Voltage | -0.5 ~ Vcc+0.5 | V |
| VIN | Input Voltage | -0.5 ~ Vcc+0.5 | V |
AC23C16200B Features
Switchable Organization
-Byte Mode : 2,097,152 X 8 bit
-Word Mode : 1,048,576 X 16 bit
Single 5V power supply operation
Access Time : 100/120ns (Max)
Standby Current : 50 (Max)
Operating Current : 60 (Max)
TTL compatible inputs and outputs
3-State outputs for wired-OR expansion
Word or Byte switchable by BHE pin
Programmable CE or OE pin
Fully static operation
Package
-AC23C16200BFW : 44pin Plastic SOP(500mil)
-AC23C16200BTR : 48pin Plastic TSOP-1(12x20mm)
-AC23C16200BTF : 48pin Plastic TSOP-1(12x20mm)
-AC23C16200BTT : 44pin Plastic TSOP-II(400mil)
-Byte Mode : 2,097,152 X 8 bit
-Word Mode : 1,048,576 X 16 bit
Single 5V power supply operation
Access Time : 100/120ns (Max)
Standby Current : 50 (Max)
Operating Current : 60 (Max)
TTL compatible inputs and outputs
3-State outputs for wired-OR expansion
Word or Byte switchable by BHE pin
Programmable CE or OE pin
Fully static operation
Package
-AC23C16200BFW : 44pin Plastic SOP(500mil)
-AC23C16200BTR : 48pin Plastic TSOP-1(12x20mm)
-AC23C16200BTF : 48pin Plastic TSOP-1(12x20mm)
-AC23C16200BTT : 44pin Plastic TSOP-II(400mil)

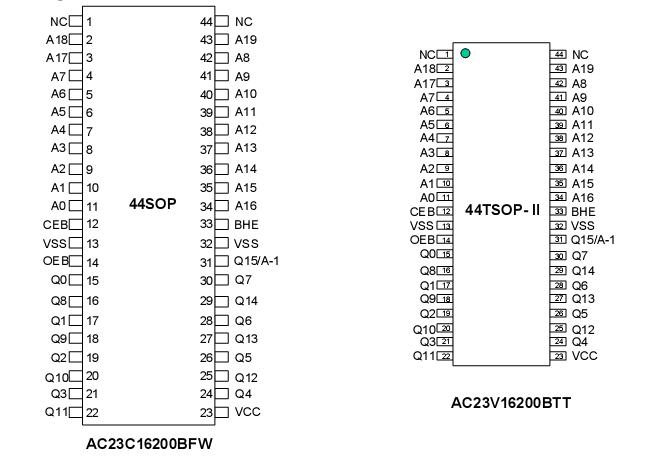

AC23C16200B Connection Diagram
AC23C16200B
