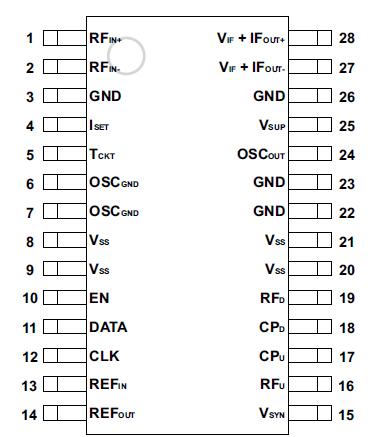

Description:
The ACD2206 uses both GaAs and Si technology to provide the downconverter and dual synthesizer funct...
The ACD2206 uses both GaAs and Si technology to provide the downconverter and dual synthesizer functions in a double conversion tuner gain block,local oscillator, balanced mixer and dual synthesizer.The specifications meet the requirements of CATV/TV/Video and Cable Modem Data applications.The ACD2206 is supplied in a 28 lead SSOP package and requires a single +5 V supply voltage.
The IC is well suited for applications where small size, low cost, low auxiliary parts count and a nocompromise performance is important. It provides for cost reduction by lowering the component and packaged IC count and decreasing the amount of labor-intensive production alignment steps, while significantly improving performance and reliability.
|
PARAMETER |
MIN |
MAX |
UNIT |
| Supply Voltage (pins 25, 27 & 28) (pin 15) |
- - |
+9 +6.5 |
VDC |
| Voltage on pins 10 through 14, 16 through 19 with VSS = 0 V |
-0.3 |
VSYN +0.3 |
VDC |
| Input Voltages (pins 1, 2 & 5) |
- |
0 |
VDC |
| Input Power (pins 1 & 2) (pin 5) (pins 13, 16 & 19) |
- - - |
+10 +17 +20 |
dBm |
| Storage Temperature |
-55 |
+150 |
°C |
| Soldering Temperature |
- |
260 |
°C |
| Soldering Time |
- |
4 |
Sec |
| Thermal Impedance, JC |
- |
40 |
°C/W |
ACD2206
PDF/DataSheet Download
The ACD2204 uses both GaAs and Si technology to provide the downconverter and dual synthesizer functions in a double conversion tuner gain block,local oscillator, balanced mixer, IF Amplifier, and dual synthesizer. The specifications meet the requirements of...
The ACD2203 uses both GaAs and Si technology to provide the downconverter and dual synthesizer functions of a double conversion tuner. The performance of the included local oscillator, balanced mixer and dual synthesizers meet the requirements of CATV/TV/Vid...
The ACD2202 uses both GaAs and Si technology to provide the downconverter and dual synthesizer functions in a double conversion tuner gain block,local oscillator, balanced mixer and dual synthesizer.The specifications meet the requirements of CATV/TV/Video a...
The ACD0900 MMIC is a high performance downconverter fabricated entirely in GaAs. It is designed for use as the second conversion stage in double-conversion tuners and cable modems, downconverting 900 -1200 MHz RF inputs to a fixed IF of 35 - 150 MHz (depend...
The ACD0900 MMIC is a high performance downconverter fabricated entirely in GaAs. It is designed for use as the 2ndconversion stage in double-conversion tuners and cable modems, downconverting 900 -1200 MHz RF inputs to a fixed IF of 35 - 150 MHz (depending ...
The ACD0900 MMIC is a high performance downconverter fabricated entirely in GaAs. It is designed for use as the second conversion stage in double-conversion tuners and cable modems, downconverting 900 -1200 MHz RF inputs to a fixed IF of 35 - 150 MHz (depend...
