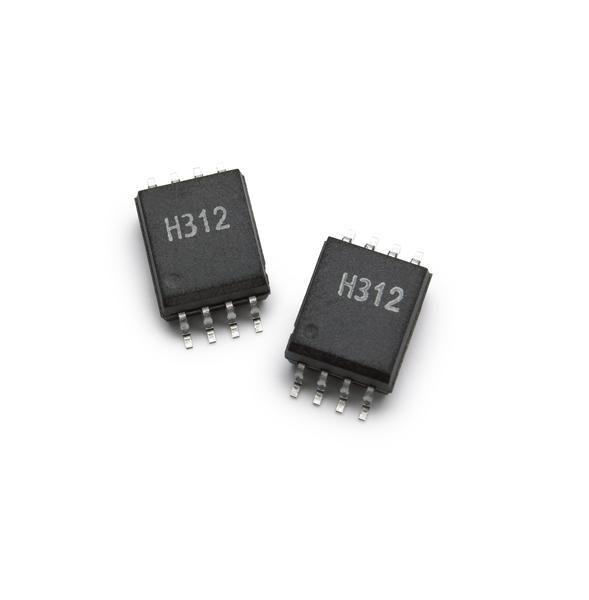

ACPL-H312-000E

Output Type :
Maximum Propagation Delay Time :
Maximum Forward Diode Current :
Maximum Continuous Output Current :
Minimum Operating Temperature : - 40 C
Packaging : Tube
Isolation Voltage : 3750 Vrms
Maximum Forward Diode Voltage : 1.8 V
Maximum Reverse Diode Voltage : 5 V
Maximum Operating Temperature : + 100 C
Maximum Power Dissipation : 295 mW
Package / Case : SO-8


Description

The ACPL-H312 contains a GaAsP LED. The LED is optically coupled to an integrated circuit with a power output stage. These optocouplers are ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The high operating voltage range of the output stage provides the drive voltages required by gate controlled devices. The voltage and current supplied by these optocouplers make them ideally suited for directly driving IGBTs with ratings up to 1200 V/100 A. For IGBTs with higher ratings, the ACPL-H312 series can be used to drive a discrete power stage which drives the IGBT gate. The ACPL-H312 has an insulation voltage of V_IORM = 891 V_peak (Option 060).
