ACPL-M61U-000E

Current Transfer Ratio :
Maximum Input Diode Current :
Maximum Reverse Diode Voltage : 5 V
Minimum Operating Temperature : - 40 C
Packaging : Tube
Package / Case : SOIC-5
Maximum Baud Rate : 10 MBps
Maximum Forward Diode Voltage : 1.85 V
Maximum Power Dissipation : 85 mW
Maximum Operating Temperature : + 125 C


Specifications

• Extended temperature and Reliability product suitable for industrial Applications
• Specifically designed for CANBus Communication applications
• Very high noise immunity for signal isolation
• Compact size for high density system design

Description

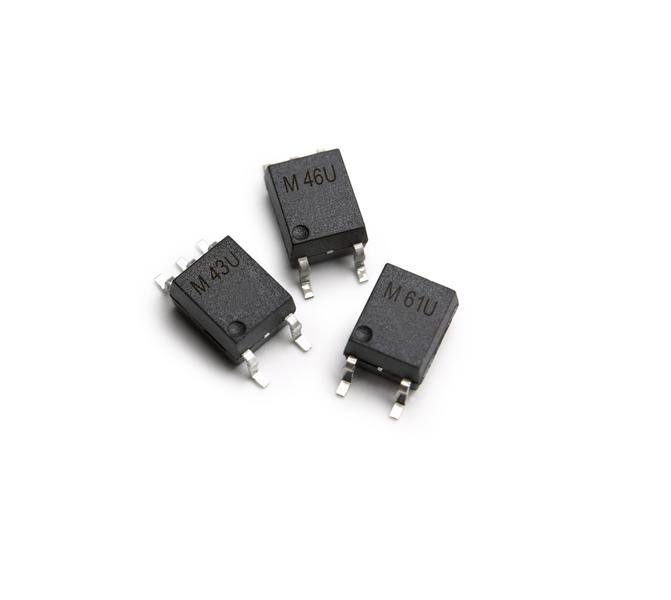

This small outline wide operating temperature, high CMR, high speed, logic gate optocoupler is a single channel device ACPL-M61U-000E in a five lead miniature footprint.

The ACPL-M61U-000E optically coupled gates combine a AlGaAs light emitting diode and an integrated high gain photo detector. The output of the detector IC is an Open-collector Schottky-clamped transistor. The internal shield provides a guaranteed common mode transient immunity specification of 15,000 V/µs at V_CM=1000V.

This optocoupler ACPL-M61U-000E is suitable for use in the industrial high speed communications logic interfacing with low propagation delays, input/output buffering and is recommended for use in high operating temperature environment.

This unique design provides maximum AC and DC circuit isolation while achieving TTL compatibility. The optocoupler AC and DC operational parameters are guaranteed from -40°C to 125°C.
