Current Transfer Ratio
:
Maximum Input Diode Current
:
Maximum Reverse Diode Voltage
: 5 V
Minimum Operating Temperature
: - 40 C
Packaging
: Reel
Maximum Baud Rate
: 15 MBps
Maximum Operating Temperature
: + 85 C
Maximum Power Dissipation
: 85 mW
Maximum Forward Diode Voltage
: 1.75 V
Package / Case
: SSO-6
DescriptionThe ADBL-A321 is designed as one kind of automotive wide operating temperature 1MBd digital optocoupler that can be used in (1)automotive IPM driver for DC-DC converters and motor inverters; (2)CANBus communications interface; (3)high temperature digital/analog signal isolation; (4)power transistor Isolation. This device uses an insulating layer between the light emitting diode and an integrated photon detector and has an increased common mode transient immunity of 30kV/s minimum at VCM = 1500V over extended temperature range.
Features of the ADBL-A321 are:(1)high temperature and reliability IPM driver for automotive application; (2)30 kV/us high common-mode rejection at VCM = 1500 V (typ); (3)compact, auto-insertable SO5 packages; (4)wide temperature range: -40 to 125 ; (5)high speed: 1MBd (typ); (6)low led drive current: 10mA (typ); (7)low propagation delay: 300ns (typ).
The absolute maximum ratings of the ADBL-A321 can be summarized as:(1)Storage Temperature: -55 to 150 °C;(2)Operating Temperature: -40 to 125 °C;(3)Average Forward Input Current: 20 mA;(4)Peak Forward Input Current (50% duty cycle, 1ms pulse width): 40 mA;(5)Peak Transient Input Current (<= 1us pulse width, 300ps): 100 mA;(6)Reversed Input Voltage: 5 V;(7)Input Power Dissipation: 30 mW;(8)Output Power Dissipation: 100 mW;(9)Average Output Current: 8 mA;(10)Peak Output Current: 16 mA.
The electrical characteristics of this device ADBL-A321 can be summarized as:(1)Capacitance (Input-Output): 0.6 pF;(2)Input-Output Insulation: 3750 VRMS;(3)Input Capacitance: 90 pF;(4)Input Reversed Breakdown Voltage: 5 V;(5)Logic Low Supply Current: 50 to 200 uA. If you want to know more information about it, please download the datasheet in www.seekic.com or www.chinaicmart.com .

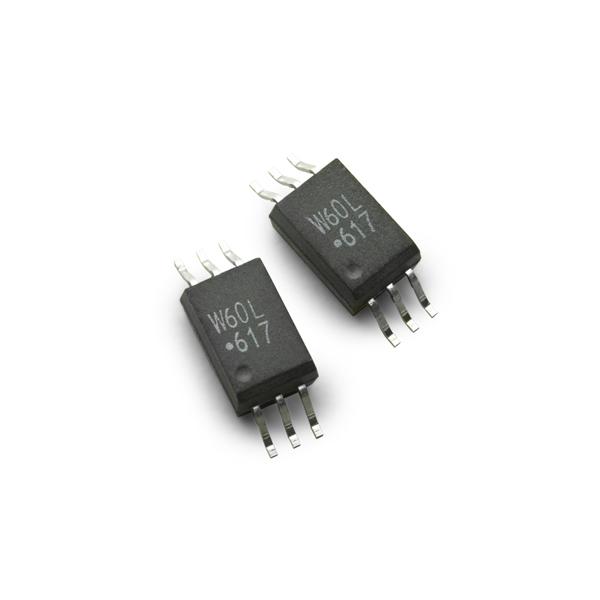

Parameters: | Technical/Catalog Information | ACPL-W60L-500E |
| Vendor | Avago Technologies US Inc. |
| Category | Isolators |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC |
| Isolation Voltage | 3750Vrms |
| Configuration | 1, One Direction |
| Input Type | DC |
| Output Type | Open Collector |
| Data Rate | 15Mbs |
| Current - Output/Channel | 50mA |
| Packaging | Tape & Reel (TR) |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | ACPL W60L 500E
ACPLW60L500E
|
ACPL-W60L-500E Data Sheet
