ACSL-6210

Features: • Available in dual, triple and quad channel configurations• Bi-directional• Wide supply voltage range 3.0V to 5.5V• High-speed: 15 MBd typical, 10 MBd minimum• 10kV/µs minimum Common Mode Rejection (CMR) at Vcm = 1000 V• LSTTL/TTL compatibleR...

product image

ACSL-6210 Picture
See larger image
SeekIC No. : 004267929 Detail

ACSL-6210: Features: • Available in dual, triple and quad channel configurations• Bi-directional• Wide supply voltage range 3.0V to 5.5V• High-speed: 15 MBd typical, 10 MBd minimum̶...

ACSL-6210 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ACSL-6210
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Available in dual, triple and quad
   channel configurations
• Bi-directional
• Wide supply voltage range
   3.0V to 5.5V
• High-speed: 15 MBd typical,
   10 MBd minimum
• 10kV/µs minimum Common Mode
   Rejection (CMR) at Vcm = 1000 V
• LSTTL/TTL compatible
• Safety and regulatory approvals
   (Pending)
     2500Vrms for 1 min per UL1577
     CSA Component Acceptance
     IEC/EN/DIN EN 60747-5-2
• 16 Pin narrow-body SOIC package
   for triple and quad channel
• -40 to 100°C temperature range


Application

• Full duplex communication
• Isolated line receiver
• Computer-peripheral interfaces
• Microprocessor system interfaces
• Digital isolation for A/D and D/A
   conversion
• Switching power supply
• Instrument input/output isolation
• Ground loop elimination
• Pulse transformer replacement

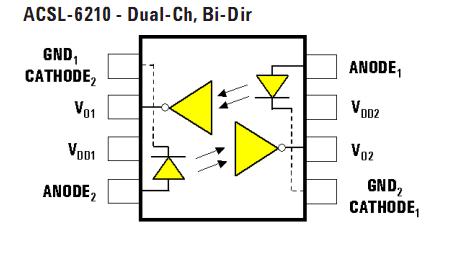

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Min.
Max.
Units
Storage Temperature
Ts
-55
125
°C
Operating Temperature
TA
-40
100
°C
Supply Voltage(1 Minute Maximum)
VDD1,VDD2
7
V
Reverse Input Voltage (Per Channel)
VR
5
V
Output Voltage (Per Channel)
VO
7
V
Average Forward InputCurrent[1] (PerChannel)
IF
15
mA
Output Current (Per Channel)
IO
50
mA
Input Power Dissipation[2] (Per Channel)
P1
27
mW
Output Power Dissipation[2] (Per Channel)
PO
60
mW



Description

ACSL-6xx0 are truly isolated, multi-channel and bi-directional, high-speed optocouplers. Integration of multiple optocouplers in monolithic form is achieved through patented process technology. These devices provide full duplex and bi-directional isolated data transfer and communication capability in compact surface mount packages. Available in 15 Mbd speed option and wide supply voltage range.

These high channel density make ACSL-6xx0 ideally suited to isolating data conversion devices, parallel buses and peripheral interfaces.

ACSL-6xx0 are available in 8-pin and 16pin narrow-body SOIC package and are specified over the temperature range of -40°C to +100°C.
