General Description
ACSL-6400 General Description
ACSL-6xx0 are truly isolated, multi-channel and bi-directional, high-speed optocouplers. Integration of multiple optocouplers in monolithic form is achieved through patented process technology. These devices provide full duplex and bi-directional isolated data transfer and communication capability in compact surface mount packages. Available in 15 Mbd speed option and wide supply voltage range.
These high channel density make them ideally suited to isolating data conversion devices, parallel buses and peripheral interfaces.
They are available in 8-pin and 16pin narrow-body SOIC package and are specified over the temperature range of -40°C to +100°C.
ACSL-6400 Maximum Ratings
|
Parameter |
Symbol |
Min. |
Max. |
Units |
| Storage Temperature |
Ts |
-55 |
125 |
°C |
| Operating Temperature |
TA |
-40 |
100 |
°C |
| Supply Voltage(1 Minute Maximum) |
VDD1,VDD2 |
7 |
V | |
| Reverse Input Voltage (Per Channel) |
VR |
5 |
V | |
| Output Voltage (Per Channel) |
VO |
7 |
V | |
| Average Forward InputCurrent[1] (PerChannel) |
IF |
15 |
mA | |
| Output Current (Per Channel) |
IO |
50 |
mA | |
| Input Power Dissipation[2] (Per Channel) |
P1 |
27 |
mW | |
| Output Power Dissipation[2] (Per Channel) |
PO |
60 |
mW |
ACSL-6400 Features
• Available in dual, triple and quad
channel configurations
• Bi-directional
• Wide supply voltage range
3.0V to 5.5V
• High-speed: 15 MBd typical,
10 MBd minimum
• 10kV/µs minimum Common Mode
Rejection (CMR) at Vcm = 1000 V
• LSTTL/TTL compatible
• Safety and regulatory approvals
(Pending)
2500Vrms for 1 min per UL1577
CSA Component Acceptance
IEC/EN/DIN EN 60747-5-2
• 16 Pin narrow-body SOIC package
for triple and quad channel
• -40 to 100°C temperature range
channel configurations
• Bi-directional
• Wide supply voltage range
3.0V to 5.5V
• High-speed: 15 MBd typical,
10 MBd minimum
• 10kV/µs minimum Common Mode
Rejection (CMR) at Vcm = 1000 V
• LSTTL/TTL compatible
• Safety and regulatory approvals
(Pending)
2500Vrms for 1 min per UL1577
CSA Component Acceptance
IEC/EN/DIN EN 60747-5-2
• 16 Pin narrow-body SOIC package
for triple and quad channel
• -40 to 100°C temperature range
ACSL-6400 Typical Application
• Full duplex communication
• Isolated line receiver
• Computer-peripheral interfaces
• Microprocessor system interfaces
• Digital isolation for A/D and D/A
conversion
• Switching power supply
• Instrument input/output isolation
• Ground loop elimination
• Pulse transformer replacement
• Isolated line receiver
• Computer-peripheral interfaces
• Microprocessor system interfaces
• Digital isolation for A/D and D/A
conversion
• Switching power supply
• Instrument input/output isolation
• Ground loop elimination
• Pulse transformer replacement

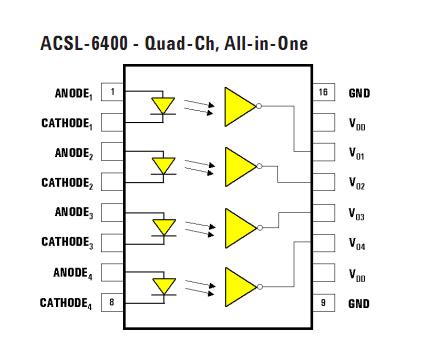

ACSL-6400 Connection Diagram
