Part Number: ACTF128K32
Description: The ACTF128K32 is a high speed, 4 megabit CMOS flash multichip module (MCM) designed for full temperature range militar...
- Table of contents:
ACTF128K32
-
Suppliers
DataSheet
General Description
ACTF128K32 General Description
The ACTF128K32 is a high speed, 4 megabit CMOS flash multichip module (MCM) designed for full temperature range military, space, or high reliability applications. The MCM can be organized as a 128K x 32 bits, 256K x 16 bits or 512K x 8 bits device and is input TTL and output CMOS compatible. The command register is written by bringing WE to a logic low level (VIL), while CE is low and OE is at logic high level (VIH). Reading is accomplished by chip Enable (CE) and Output Enable (OE) being logically active, see Figure 9. Access time grades of 60ns, 70ns, 90ns, 120ns and 150ns maximum are standard. The ACTF128K32 is packaged in a hermetically
ACTF128K32 Maximum Ratings
| Parameter |
Symbol |
Range |
Units |
| Case Operating Temperature |
TC |
-55 to +125 |
°C |
| Storage Temperature Range |
TSTG |
-65 to +150 |
°C |
| Supply Voltage Range |
VCC |
-2.0 to +7.0 |
V |
| Signal Voltage Range (Any Pin Except A9) Note 1 |
VG |
-2.0 to +7.0 |
V |
| Maximum Lead Temperature (10 seconds) |
300 |
°C | |
| Data Retention |
10 |
Years | |
| Endurance (Write/Erase cycles) |
100,000 Minimum |
||
| A9 Voltage for sector protect, Note 2 |
VID |
-2.0 to +14.0 |
V |
ACTF128K32 Features
`4 Low Power 128K x 8 FLASH Die in One MCM Package
`Organized as 128K x 32
User Configurable to 256K x 16 or 512K x 8
Upgradable to 512K x 32 in same Package Style
`Access Times of 60, 70, 90, 120 and 150ns
`+5V Programing, 5V ±10% Supply
`100,000 Erase/Program Cycles Typical, 0°C to +70°C
`Low Standby Current
`TTL Compatible Inputs and CMOS Outputs
`Embedded Erase and Program Algorithms
`Page Program Operation and Internal Program Control Time
`Commercial, Industrial and Military Temperature Ranges
`MIL-PRF-38534 Compliant MCMs Available
`Industry Standard Pinouts
`Packaging Hermetic Ceramic
68 Lead, .88" x .88" x .160" Single-Cavity Small Outline gull wing, Aeroflex code# "F5" (Drops into the 68 Lead JEDEC .99"SQ CQFJ footprint)
66 Pin, 1.08" x 1.08" x .160" PGA Type, No Shoulder, Aeroflex code# "P3"
66 Pin, 1.08" x 1.08" x .185" PGA Type, With Shoulder, Aeroflex code# "P7"
`Sector Architecture (Each Die)
8 Equal size sectors of 64K bytes each
Any Combination of Sectors can be erased with one command sequence
Supports Full Chip Erase
`DESC SMD# 596294716 Released (P3,P7,F5)
`Organized as 128K x 32
User Configurable to 256K x 16 or 512K x 8
Upgradable to 512K x 32 in same Package Style
`Access Times of 60, 70, 90, 120 and 150ns
`+5V Programing, 5V ±10% Supply
`100,000 Erase/Program Cycles Typical, 0°C to +70°C
`Low Standby Current
`TTL Compatible Inputs and CMOS Outputs
`Embedded Erase and Program Algorithms
`Page Program Operation and Internal Program Control Time
`Commercial, Industrial and Military Temperature Ranges
`MIL-PRF-38534 Compliant MCMs Available
`Industry Standard Pinouts
`Packaging Hermetic Ceramic
68 Lead, .88" x .88" x .160" Single-Cavity Small Outline gull wing, Aeroflex code# "F5" (Drops into the 68 Lead JEDEC .99"SQ CQFJ footprint)
66 Pin, 1.08" x 1.08" x .160" PGA Type, No Shoulder, Aeroflex code# "P3"
66 Pin, 1.08" x 1.08" x .185" PGA Type, With Shoulder, Aeroflex code# "P7"
`Sector Architecture (Each Die)
8 Equal size sectors of 64K bytes each
Any Combination of Sectors can be erased with one command sequence
Supports Full Chip Erase
`DESC SMD# 596294716 Released (P3,P7,F5)

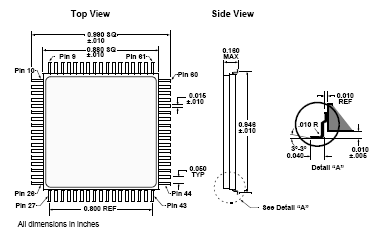

ACTF128K32 Connection Diagram
ACTF128K32
PDF/DataSheet Download
- Datasheet: ACTF128K32
- File Size: 206212 KB
- Manufacturer: AEROFLEX [Aeroflex Circuit Technology]
- Click here to Download
