Product Details

Description



Features:

• QML Class T, Per MIL-PRF-38535
• Radiation Performance
- Gamma Dose () 1 x 105 RAD(Si)
- Latch-Up Free Under Any Conditions
- Single Event Upset (SEU) Immunity: <1 x 10-10
Errors/Bit/Day (Typ)
- SEU LET Threshold . . . . . . . . . . . . .>100 MEV-cm2/mg
• 1.25 Micron Radiation Hardened SOS CMOS
• Significant Power Reduction Compared to ALSTTL Logic
• DC Operating Voltage Range. . . . . . . . . . . .  4.5V to 5.5V
• Input Logic Levels
-VIL = 0.8V Max
-VIH = VCC/2 Min
• Fast Propagation Delay  . . . . . . . . 21ns (Max), 14ns (Typ)

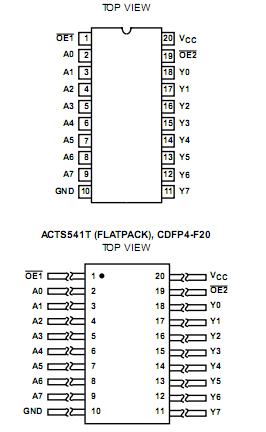

Pinout

Connection Diagram


Description

Intersil's Satellite Applications FlowTM (SAF) devices ACTS541T are fully tested and guaranteed to 100kRAD total dose. These QML Class T devices are processed to a standard flow intended to meet the cost and shorter lead-time needs of large volume satellite manufacturers, while maintaining a high level of reliability.

The Intersil ACTS541T is a Radiation Hardened Octal Buffer/Line Driver, with three-state outputs. The output enable pins OE1, OE2 control the three-state outputs. If either enable is high the output will be in a high impedance state. For data output both enables must be low.
