Part Number: AD10200
MFG: ADI
D/C: 09
Description: The AD10200 is a full channel ADC solution with on-module signal conditioning for improved dynamic per...
- Table of contents:
AD10200
-
Suppliers
DataSheet
General Description
AD10200 General Description
The AD10200 is a full channel ADC solution with on-module signal conditioning for improved dynamic performance and fully matched channel-to-channel performance. The module includes two wide-dynamic range ADCs. Each ADC has a transformer coupled front-end optimized for Direct-IF sampling.The AD10200 has on-chip track-and-hold circuitry, and utilizes an innovative architecture to achieve 12-bit, 105 MSPS performance.The AD10200 uses innovative high-density circuit design to achieve exceptional matching and performance while still maintaining excellent isolation, and providing for significant board area savings.
The AD10200 operates with 5.0 V supply for the analog-todigital conversion. Each channel is completely independent
allowing operation with independent encode and analog inputs. The AD10200 is packaged in a 68-lead ceramic chip carrier package. Manufacturing is done on Analog Devices, Inc. MIL-38534 Qualified Manufacturers Line (QML) and components are available up to Class-H (55°C to +125°C).
AD10200 Maximum Ratings
VDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 V
VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 V
Analog Inputs . . . . . . . . . . . . . . . . . . . . . . . 5 V p-p(18 dBm)
Digital Inputs . . . . . . . . . . . . . . . . . . . 0.5 V to VDD + 0.5 V
Digital Output Current . . . . . . . . . . . . . . . . . . . . . . . . 20 mA
Operating Temperature . . . . . . . . . . . . .55°C to +125°C
Storage Temperature . . . . . . . . . . . . . . 65°C to +150°C
Maximum Junction Temperature . . . . . . . . . . . . . . . . 175°C
Maximum Case Temperature . . . . . . . . . . . . . . . . . . .150°C
NOTES
1 Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions outside of those indicated in the operation sections of this specification is not implied. Exposure to absolute maximum ratings for extended periods may affect device reliability.
2 Typical thermal impedances for "Z" package:JC = 2.22°C/W; JA = 24.3°C/W
AD10200 Features
`Dual, 105 MSPS Minimum Sample Rate
`Channel-Channel Isolation, >80 dB
`AC-Coupled Signal Conditioning Included
`Gain Flatness up to Nyquist: < 0.2 dB
`Input VSWR 1.1:1 to Nyquist
`80 dB Spurious-Free Dynamic Range
`Two's Complement Output Format
`3.3 V or 5 V CMOS-Compatible Output Levels
`0.850 W per Channel
`Industrial and Military Grade
`Channel-Channel Isolation, >80 dB
`AC-Coupled Signal Conditioning Included
`Gain Flatness up to Nyquist: < 0.2 dB
`Input VSWR 1.1:1 to Nyquist
`80 dB Spurious-Free Dynamic Range
`Two's Complement Output Format
`3.3 V or 5 V CMOS-Compatible Output Levels
`0.850 W per Channel
`Industrial and Military Grade
AD10200 Typical Application
·Radar IF Receivers
·Phased Array Receivers
·Communications Receivers
·Secure Communications
·GPS Antijamming Receivers
·Multichannel, Multimode Receivers
·Phased Array Receivers
·Communications Receivers
·Secure Communications
·GPS Antijamming Receivers
·Multichannel, Multimode Receivers

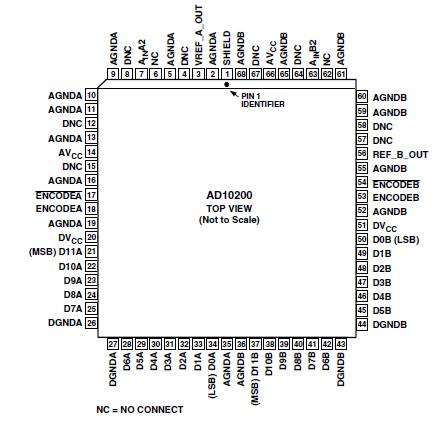

AD10200 Connection Diagram
AD10200
PDF/DataSheet Download
- Datasheet: AD10200
- File Size: 1743334 KB
- Manufacturer: AD [Analog Devices]
