Purchase AD12401, In-stock AD12401 From SeekIC.
MFG:ADI D/C:09
Part Number: AD12401
MFG: ADI
D/C: 09
Description: The AD12401 is a 12-bit analog-to-digital converter (ADC) with a transformer-coupled analog input and ...
- Table of contents:
AD12401
-
Suppliers
DataSheet
General Description
AD12401 General Description

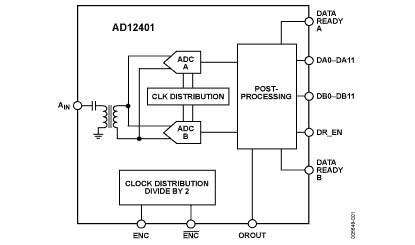

The AD12401 is a 12-bit analog-to-digital converter (ADC) with a transformer-coupled analog input and digital post-processing for enhanced SFDR. The product operates at up to 400 MSPS conversion rate with outstanding dynamic performance in wideband carrier systems.
The AD12401 requires a 3.7 V analog supply and 3.3 V and 1.5 V digital supplies, and provides a flexible ENCODE signal that can be differential or single ended. No external reference is required.
The AD12401 package style is an enclosed 2.9" × 2.6" × 0.6" module. Performance is rated over a 0°C to 60°C case temperature range.
AD12401 Maximum Ratings
VA to AGND.......................................................................5 V
VC to DGND......................................................................4 V
VD to DGND...........................................................1.6 V max
Analog Input Voltage................................................6 V (dc)
Analog Input Power...........................................18 dBm (ac)
ENCODE Input Voltage.............................................6 V (dc)
ENCODE Input Power........................................12 dBm (ac)
Logic Inputs..................................................−0.3 V to +4 V
Storage Temperature Range, Ambient.....−65°C to +150°C
Operating Temperature Range.........................0°C to 60°C
VC to DGND......................................................................4 V
VD to DGND...........................................................1.6 V max
Analog Input Voltage................................................6 V (dc)
Analog Input Power...........................................18 dBm (ac)
ENCODE Input Voltage.............................................6 V (dc)
ENCODE Input Power........................................12 dBm (ac)
Logic Inputs..................................................−0.3 V to +4 V
Storage Temperature Range, Ambient.....−65°C to +150°C
Operating Temperature Range.........................0°C to 60°C
AD12401 Features
· Up to 400 MSPS sample rate
· SNR of 63 dBFS @128 MHz
· SFDR of 70 dBFS @128 MHz
· VSWR of 1:1.5
· High or low gain grades
· Wideband ac-coupled input signal conditioning
· Enhanced spurious-free dynamic range
· Single-ended or differential ENCODE signal
· LVDS output levels
· Twos complement output da
· SNR of 63 dBFS @128 MHz
· SFDR of 70 dBFS @128 MHz
· VSWR of 1:1.5
· High or low gain grades
· Wideband ac-coupled input signal conditioning
· Enhanced spurious-free dynamic range
· Single-ended or differential ENCODE signal
· LVDS output levels
· Twos complement output da
AD12401 Typical Application
· Communications test equipment
· Radar and satellite subsystems
· Phased array antennas, digital beams
· Multichannel, multimode receivers
· Secure communications
· Wireless and wired broadband communications
· Wideband carrier frequency systems
· Radar and satellite subsystems
· Phased array antennas, digital beams
· Multichannel, multimode receivers
· Secure communications
· Wireless and wired broadband communications
· Wideband carrier frequency systems
