Purchase AD1839, In-stock AD1839 From SeekIC.
- Table of contents:
AD1839
-
Suppliers
DataSheet
General Description
AD1839 Maximum Ratings
AVDD, DVDD, ODVDD to AGND, DGND . . 0.3 V to +6.0 V
AGND to DGND . . . . . . . . . . . . . . . . . . . . . 0.3 V to +0.3 V
Digital I/O Voltage to DGND . . . . . 0.3 V to ODVDD + 0.3 V
Analog I/O Voltage to AGND . . . . . . 0.3 V to AVDD + 0.3 V
Operating Temperature Range
Industrial (A Version) . . . . . . . . . . . . . . . . 40C to +85C
AGND to DGND . . . . . . . . . . . . . . . . . . . . . 0.3 V to +0.3 V
Digital I/O Voltage to DGND . . . . . 0.3 V to ODVDD + 0.3 V
Analog I/O Voltage to AGND . . . . . . 0.3 V to AVDD + 0.3 V
Operating Temperature Range
Industrial (A Version) . . . . . . . . . . . . . . . . 40C to +85C
AD1839 Features
5 V Stereo Audio System with 3.3 V Tolerant Digital Interface
Supports up to 96 kHz Sample Rates
192 kHz Sample Rate Available on One DAC
Supports 16-/20-/24-Bit Word Lengths
Multibit-Modulators with Perfect Differential Linearity Restoration for Reduced Idle Tones and Noise Floor
Data Directed Scrambling DACs-Least Sensitive to Jitter
Single-Ended Output ADCs: 95 dB THD + N, 105 dB SNR and Dynamic Range DACs: 92 dB THD + N, 108 dB SNR and Dynamic Range
On-Chip Volume Controls per Channel with 1024 Step Linear Scale
DAC and ADC Software Controllable Clickless Mutes
Digital De-emphasis Processing
Supports 256*fS, 512 *fS, and 768*fS Master Mode Clocks
Power-Down Mode Plus Soft Power-Down Mode
Flexible Serial Data Port with Right-Justified, Left-Justified, I2S Compatible, and DSP Serial Port Modes
TDM Interface Mode Supports 8 In/8 Out Using a Single SHARC®SPORT
52-Lead MQFP Plastic Package
AD1839 Typical Application
DVD Video and Audio Players
Home Theater Systems
Automotive Audio Systems
Audio/Visual Receivers
Digital Audio Effects Processors

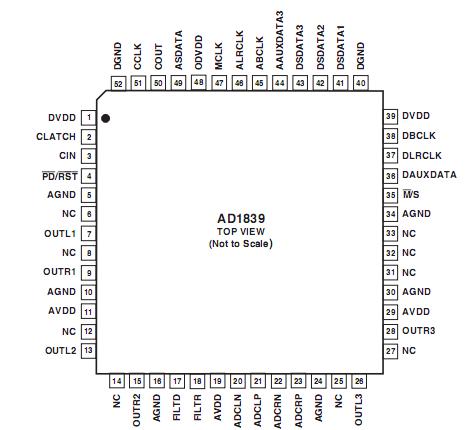

AD1839 Connection Diagram
AD1839
