Purchase AD1893, In-stock AD1893 From SeekIC.
MFG:AD Package Cooled:N/A D/C:08+
- Table of contents:
AD1893
-
Suppliers
DataSheet

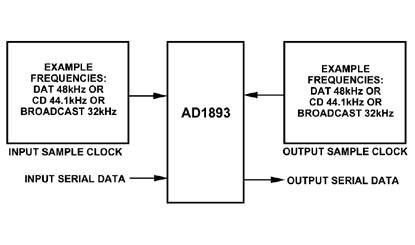

General Description
AD1893 Maximum Ratings
| Min | Max | Units | |
| VDD to GND DC Input Voltage Latch-Up Trigger Current Soldering |
0.3 |
7.0 VDD + 0.3 +1000 10 |
V |
AD1893 Features
Low Cost
LQFP and PDIP Packages
3 V Supply Performance Specified-Very Low Power
Automatically Senses Sample Frequencies-No
Programming Required
Rejects Sample Clock Jitter
Accommodates Dynamically Changing Asynchronous
Sample Clocks
8 kHz to 56 kHz Sample Clock Frequency Range
Approximately 1:2 to 2:1 Ratio Between Sample
Clocks
96 dB THD+N at 1 kHz
96 dB Dynamic Range
Optimal Clock Tracking Control-Slow/Fast Settling
Modes
Linear Phase in All Modes
Automatic Output Mute
Flexible Four-Wire Serial Interfaces with Right-Justified
Mode
Power-Down Mode
On-Chip Oscillator
AD1893
