AD1980
-
Suppliers
DataSheet
General Description
AD1980 Maximum Ratings
| Parameter | Min | Max | Unit |
| Power Supplies | |||
| Digital (DVDD) | 0.3 | +3.6 | V |
| Analog (AVDD) | 0.3 | +6.0 | V |
| Input Current (Except Supply Pins) | ±10.0 | mA | |
| Analog Input Voltage (Signal Pins) | 0.3 | AVDD + 0.3 | V |
| Digital Input Voltage (Signal Pins) | 0.3 | DVDD + 0.3 | V |
| Ambient Temperature (Operating) | 0 | 70 | |
| Storage Temperature | 65 | +150 |
AD1980 Features
AC '97 2.3 COMPATIBLE FEATURES
6 DAC Channels for 5.1 Surround
S/PDIF Output
Integrated Stereo Headphone Amplifier
Variable Rate Audio
Double Rate Audio (fS = 96 kHz)
Greater than 90 dB Dynamic Range
20-Bit PCM DACs
Line-Level Mono "Phone" Input
High Quality CD Input
Selectable MIC Input with Preamp
AUX and Line_In Stereo Inputs
External Amplifier Power-Down Control
Power Management Modes
48-Lead LQFP Package
ENHANCED FEATURES
Integrated Parametric Equalizer
Stereo MIC Preamp Support
Integrated PLL for System Clocking
Variable Sample Rate 7 kHz to 96 kHz
Jack Sense (Auto Topology Switching)
Software Controlled VREF_OUT for MIC Bias
Software Enabled Outputs for Jack Sharing
Auto Down-Mix and Channel Spreading Modes
6 DAC Channels for 5.1 Surround
S/PDIF Output
Integrated Stereo Headphone Amplifier
Variable Rate Audio
Double Rate Audio (fS = 96 kHz)
Greater than 90 dB Dynamic Range
20-Bit PCM DACs
Line-Level Mono "Phone" Input
High Quality CD Input
Selectable MIC Input with Preamp
AUX and Line_In Stereo Inputs
External Amplifier Power-Down Control
Power Management Modes
48-Lead LQFP Package
ENHANCED FEATURES
Integrated Parametric Equalizer
Stereo MIC Preamp Support
Integrated PLL for System Clocking
Variable Sample Rate 7 kHz to 96 kHz
Jack Sense (Auto Topology Switching)
Software Controlled VREF_OUT for MIC Bias
Software Enabled Outputs for Jack Sharing
Auto Down-Mix and Channel Spreading Modes

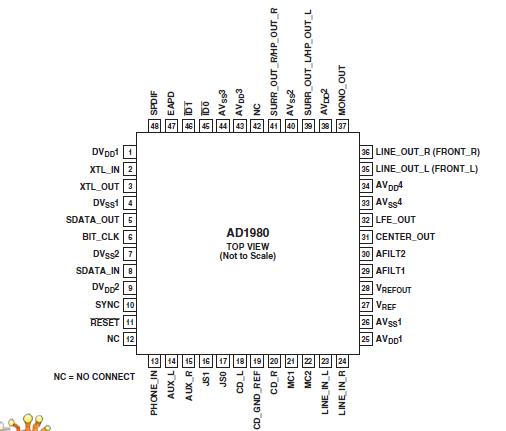

AD1980 Connection Diagram
AD1980
PDF/DataSheet Download
