Purchase AD5173, In-stock AD5173 From SeekIC.
Package Cooled:3343
Part Number: AD5173
Package Cooled: 3343
Description: The AD5172/AD5173 are dual channel, 256-position, one-time programmable (OTP) digital potentiometers1 ...
- Table of contents:
AD5173
-
Suppliers
DataSheet
General Description
AD5173 General Description
The AD5172/AD5173 are dual channel, 256-position, one-time programmable (OTP) digital potentiometers1 that employ fuse link technology to achieve memory retention of resistance setting. OTP is a cost-effective alternative to EEMEM for users who do not need to program the digital potentiometer setting in memory more than once. This device performs the same electronic adjustment function as mechanical potentiometers or variable resistors with enhanced resolution, solid-state reliability, and superior low temperature coefficient performance.
The AD5172/AD5173 are programmed using a 2-wire, I2C compatible digital interface. Unlimited adjustments are allowed before permanently setting the resistance value. During OTP activation, a permanent blow fuse command freezes the wiper position (analogous to placing epoxy on a mechanical trimmer). Unlike traditional OTP digital potentiometers, the AD5172/ AD5173 have a unique temporary OTP overwrite feature that allows for new adjustments even after the fuse has been blown. However, the OTP setting is restored during subsequent power- up conditions. This feature allows users to treat these digital potentiometers as volatile potentiometers with a programmable preset.
AD5173 Maximum Ratings
VDD to GND 0.3 V to +7 V
VA, VB, VW to GND VDD
Terminal Current, AxBx, AxWx, BxWx1
Pulsed ±20 mA
Continuous ±5 mA
Digital Inputs and Output Voltage to GND 0 V to 7 V
Operating Temperature Range 40°C to +125°C
Maximum Junction Temperature (TJMAX) 150°C
Storage Temperature 65°C to +150°C
Lead Temperature (Soldering, 10 sec) 300°C
Thermal Resistance2 : MSOP-10 230°C/W
VA, VB, VW to GND VDD
Terminal Current, AxBx, AxWx, BxWx1
Pulsed ±20 mA
Continuous ±5 mA
Digital Inputs and Output Voltage to GND 0 V to 7 V
Operating Temperature Range 40°C to +125°C
Maximum Junction Temperature (TJMAX) 150°C
Storage Temperature 65°C to +150°C
Lead Temperature (Soldering, 10 sec) 300°C
Thermal Resistance2 : MSOP-10 230°C/W
AD5173 Features
2-channel, 256-position
OTP (one-time programmable) set-and-forget resistance setting, low cost alternative to EEMEM
Unlimited adjustments prior to OTP activation
OTP overwrite allows dynamic adjustments with user defined preset
End-to-end resistance: 2.5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ
Compact MSOP-10 (3 mm * 4.9 mm) package
Fast settling time: tS = 5 µs typ in power-up
Full read/write of wiper register
Power-on preset to midscale
Extra package address decode pins AD0 and AD1 (AD5173)
Single supply 2.7 V to 5.5 V
Low temperature coefficient: 35 ppm/°C
Low power, IDD = 6 µA max
Wide operating temperature: 40°C to +125°C
Evaluation board and software are available
Software replaces µC in factory programming applications
OTP (one-time programmable) set-and-forget resistance setting, low cost alternative to EEMEM
Unlimited adjustments prior to OTP activation
OTP overwrite allows dynamic adjustments with user defined preset
End-to-end resistance: 2.5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ
Compact MSOP-10 (3 mm * 4.9 mm) package
Fast settling time: tS = 5 µs typ in power-up
Full read/write of wiper register
Power-on preset to midscale
Extra package address decode pins AD0 and AD1 (AD5173)
Single supply 2.7 V to 5.5 V
Low temperature coefficient: 35 ppm/°C
Low power, IDD = 6 µA max
Wide operating temperature: 40°C to +125°C
Evaluation board and software are available
Software replaces µC in factory programming applications
AD5173 Typical Application
Systems calibration
Electronics level setting
Mechanical Trimmers® replacement in new designs
Permanent factory PCB setting
Transducer adjustment of pressure, temperature, position, chemical, and optical sensors
RF amplifier biasing
Automotive electronics adjustment
Gain control and offset adjustment
Electronics level setting
Mechanical Trimmers® replacement in new designs
Permanent factory PCB setting
Transducer adjustment of pressure, temperature, position, chemical, and optical sensors
RF amplifier biasing
Automotive electronics adjustment
Gain control and offset adjustment

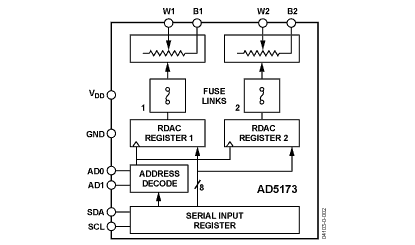

AD5173 Connection Diagram
AD5173
