Part Number: AD5260





Package Cooled: new



Description: The AD5260 and AD5262 are 1- and 2-channel, 256 position, SPI interface digitally controlled, variable resistor (VR) devices. These par...


Urgent Purchase

AD5260 General Description



The AD5260 and AD5262 are 1- and 2-channel, 256 position, SPI interface digitally controlled, variable resistor (VR) devices. These parts operate from either a single +5 V to +15 V supply or a dual

AD5260 Maximum Ratings

# Channels 1
# Positions 256
Memory Type Volatile
Interface SPI
Resistor Values (kOhms) 20, 50, 200
Bipolar Voltage Range (V) ±5V
Voltage Range (V) +15V
Supply Current 0.1A
Temp. Range -40 °C to.. 85Deg
Absolute Tempco (ppm/°C) 35ppm/C
Package TSSOP

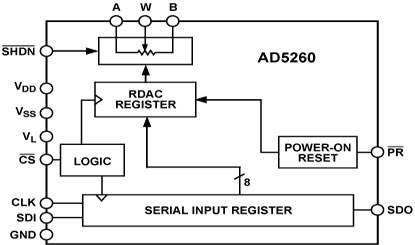

AD5260 Connection Diagram

AD5260 Connection Diagram
