AD5338

Features: AD5337-2 buffered 8-bit DACsin 8-leadMSOPAD5338, AD5338-1 -2 buffered 10-bit DACsin 8-lead MSOP AD5339 -2 buffered 12-bit DACsin 8-lead MSOP Low power operation: 250 mA@ 3 V, 300 mA@ 5 V 2-wire (I2C®compatible) serialinterface 2.5 V to 5.5 V power supply Guaranteedmonotonic by design...

product image

AD5338 Picture
See larger image
SeekIC No. : 004269144 Detail

AD5338: Features: AD5337-2 buffered 8-bit DACsin 8-leadMSOPAD5338, AD5338-1 -2 buffered 10-bit DACsin 8-lead MSOP AD5339 -2 buffered 12-bit DACsin 8-lead MSOP Low power operation: 250 mA@ 3 V, 300 mA@ 5 V 2...

AD5338 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AD5338
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

AD5337
-2 buffered 8-bit DACsin 8-leadMSOP
AD5338, AD5338-1
-2 buffered 10-bit DACsin 8-lead MSOP
AD5339
-2 buffered 12-bit DACsin 8-lead MSOP
Low power operation: 250 mA@ 3 V, 300 mA@ 5 V
2-wire (I2C®compatible) serialinterface
2.5 V to 5.5 V power supply
Guaranteedmonotonic by design over allcodes
Power-down to 80 nA@ 3 V,200 nA @ 5V
3 power-down modes
Double-buffered input logic
Output range: 0 V to VREF
Power-on reset to 0 V
Simultaneous update ofoutputs (LDAC</a>function)
Software clear facility
Data readback facility
On-chip rail-to-rail output buffer amplifiers
Temperature range −40°C to +105°C




Application

-Portable battery-powered instruments
-Digital gain and offset adjustment
-Programmable voltage and current sources
-Programmable attenuators
-Industrial process control





Pinout

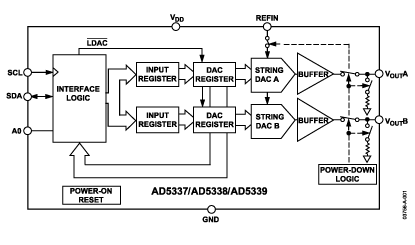

AD5338 Diagram

Connection Diagram




Specifications

Resolution (Bits) 10bit
DAC Update Rate 14.8kSPS
DAC Settling Time 7s
# DAC Outputs 2
DAC Type Voltage Out
DAC Input Format I2C/Ser 2-wire
Output FSR (Uni Vref)
Ref Int/Ext Ext
Supply Vnom Single(+2.7),Single(+3),Single(+3.3),Single(+5)
Pwr Diss 1.9mW
Package SOP


Parameter Rating
VDD to GND -0.3V to +7V
SCL,SDA to GND -0.3V to VDD+0.3V
AO to GND -0.3V to VDD+0.3V
Reference Input Voltage to GND -0.3V to VDD+0.3V
VOUT A-VOUTB to GND -0.3V to VDD+0.3V
Operating Temperature Range
Industrial(B Version) -40 to +105
Storage Temperature Range -65 to 150

Junction Temperature(T,max)

 150
MSOP Package
Power Dissipation (T,max-TA)JA
JA Thermal Impedance 206/W
JC Thermal Impedance 44/W
Reflow Soldering
Peak Temperature 220+5/-0
Time at Peak Temperature 10s to 40s





Description

The AD5337/AD5338/AD5339 are dual 8-, 10-, and 12-bit buffered voltage output DACs, respectively. Each part is housed in an 8-lead MSOP package and operates from a single 2.5 V to 5.5 V supply,
