Purchase AD5428, In-stock AD5428 From SeekIC.
MFG:ADI D/C:09
Part Number: AD5428
MFG: ADI
D/C: 09
Description: The AD5428/AD5440/AD5447 are Dual CMOS 8-, 10- and 12-Bit Current Output Digital-to-Analog Converters (DACs) respectively.These ...
- Table of contents:
AD5428
-
Suppliers
DataSheet
General Description
AD5428 General Description
The AD5428/AD5440/AD5447 are Dual CMOS 8-, 10- and 12-Bit Current Output Digital-to-Analog Converters (DACs) respectively.
These devices operate from a +2.5 V to 5.5 V power supply,
AD5428 Maximum Ratings
| Resolution (Bits) | 8bit |
| DAC Update Rate | 21.3MSPS |
| DAC Settling Time | 30ns |
| # DAC Outputs | 2 |
| DAC Type | Current Out |
| DAC Input Format | Par |
| Output FSR | (-Vref),(Bip Vref),(Uni Vref),User Def. Range/Offset |
| Ref Int/Ext | Ext |
| Supply Vnom | Single(+2.5),Single(+2.7),Single(+3),Single(+3.3),Single(+5) |
| Pwr Diss | 3.3W |
| Package | SOP |

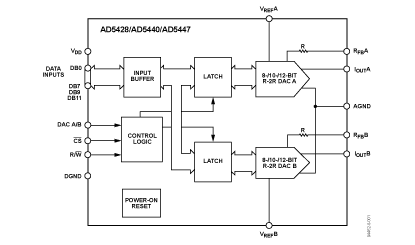

AD5428 Connection Diagram
AD5428
PDF/DataSheet Download
- Datasheet: AD5428
- File Size: 881474 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
