Features: 2.5 V to 5.5 V Supply OperationFast Parallel Interface (17 ns Write Cycle)10 MHz Multiplying Bandwidth10 V Reference InputExtended Temperature Range 40 to +12520-Lead TSSOP and Chip Scale (4 mm 4 mm) Packages8-, 10-, and 12-Bit Current Output DACsUpgrades to AD7524/AD7533/AD7545Pin Compatible 8-, 10-, and 12-Bit DACs in Chip ScaleGuaranteed Monotonic4-Quadrant MultiplicationPower-On Reset with Brownout DetectionReadback Function0.4

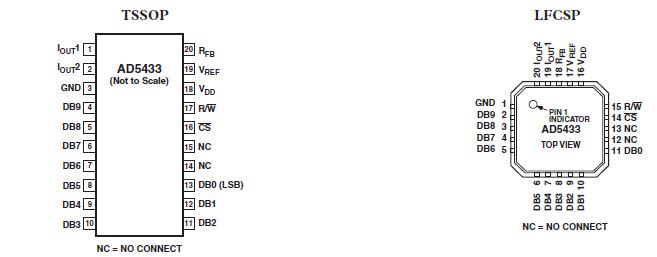

A Typical Power ConsumptionApplicationPortable Battery-Powered ApplicationsWaveform GeneratorsAnalog ProcessingInstrumentation ApplicationsProgrammable Amplifiers and AttenuatorsDigitally-Controlled CalibrationProgrammable Filters and OscillatorsComposite VideoUltrasoundGain, Offset, and Voltage TrimmingPinout
Specifications
| Resolution (Bits) |
10bit |
| DAC Update Rate |
20.4MSPS |
| DAC Settling Time |
35ns |
| # DAC Outputs |
1 |
| DAC Type |
Current Out |
| DAC Input Format |
Par |
| Output FSR |
(-Vref),(Bip Vref),(Uni Vref),User Def. Range/Offset |
| Ref Int/Ext |
Ext |
| Supply Vnom |
Single(+2.7),Single(+3),Single(+3.3),Single(+5) |
| Pwr Diss |
25W |
| Package |
CSP,SOP |
(TA = 25, unless otherwise noted.)
VDD to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +7 V
VREF, RFB to GND . . . . . . . . . . . . . . . . . . . . . . 12 V to +12 V
IOUT1, IOUT2 to GND . . . . . . . . . . . . . . . . . . . . 0.3 V to +7 V
Logic Inputs and Output2 . . . . . . . . . . . 0.3 V to VDD +0.3 V
Operating Temperature Range
Extended Industrial (Y Version) . . . . . . . . 40 to +125
Storage Temperature Range . . . . . . . . . . . . . 65 to +150
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . 150
16-Lead TSSOP
JA Thermal Impedance . . . . . . . . . 150/W
20-Lead TSSOP JA Thermal Impedance . . . . . . . . . 143/W
20-Lead LFCSP JA Thermal Impedance . . . . . . . . . 135/W
Lead Temperature, Soldering (10 seconds) . . . . . . . . . . 300

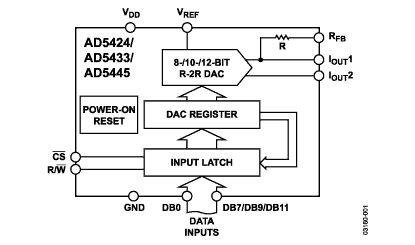

IR Reflow, Peak Temperature (<20 seconds) . . . . . . . . 235DescriptionThe AD5424/AD5433/AD5445 are CMOS 8-, 10-, and 12-bitcurrent output digital-to-analog converters (DACs), respectively.
These devices operate from a 2.5 V to 5.5 V power supply,making them suited to battery-powered applications and manyother applications.
These DACs utilize data readback allowing the user to read thecontents of the DAC register via the DB pins. On power-up, theinternal register and latches are filled with 0s and the DACoutputs are at zero scale.
As a result of manufacture on a CMOS submicron process, theyoffer excellent 4-quadrant multiplication characteristics, withlarge signal multiplying bandwidths of up to 10 MHz.
The applied external reference input voltage (VREF) determinesthe full-scale output current. An integrated feedback resistor(RFB) provides temperature tracking and full-scale voltage outputwhen combined with an external I-to-V precision amplifier.While these devices are upgrades of AD7524/AD7533/AD7545in multiplying bandwidth performance, they have a latchedinterface and cannot be used in transparent mode.The AD5424 is available in small 20-lead LFCSP and 16-leadTSSOP packages, while the AD5433/AD5445 DACs areavailablein small 20-lead LFCSP and TSSOP packages.
AD5433 Data Sheet
