Purchase AD5443, In-stock AD5443 From SeekIC.
MFG:ADI D/C:09
Part Number: AD5443
MFG: ADI
D/C: 09
Description: The AD5426/AD5432/AD5443 are CMOS 8-, 10- and 12-bit Current Output digital-to-analog converters respectively. These devices operat...
- Table of contents:
AD5443
-
Suppliers
DataSheet
General Description
AD5443 General Description
The AD5426/AD5432/AD5443 are CMOS 8-, 10- and 12-bit Current Output digital-to-analog converters respectively.
These devices operate from a +2.5 V to 5.5 V power supply, making them suited to
AD5443 Maximum Ratings
| Resolution (Bits) | 12bit |
| DAC Update Rate | 2.47MSPS |
| DAC Settling Time | 90ns |
| # DAC Outputs | 1 |
| DAC Type | Current Out |
| DAC Input Format | Ser,SPI |
| Output FSR | (-Vref),(Bip Vref),(Uni Vref),User Def. Range/Offset |
| Ref Int/Ext | Ext |
| Supply Vnom | Single(+3.3),Single(+5) |
| Pwr Diss (Max) | 25W |
| Package | SOP |

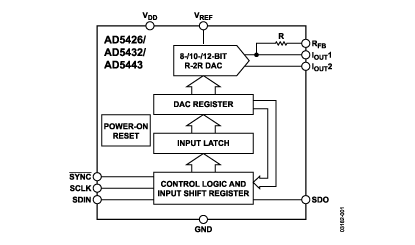

AD5443 Connection Diagram
AD5443
PDF/DataSheet Download
- Datasheet: AD5443
- File Size: 881474 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
