Purchase AD5445, In-stock AD5445 From SeekIC.
MFG:ADI D/C:09
Part Number: AD5445
MFG: ADI
D/C: 09
Description: The AD5424/AD5433/AD5445 are CMOS 8-, 10- and 12-bit current output digital-to-analog converters (DACs) respectively.These devices ...
- Table of contents:
AD5445
-
Suppliers
DataSheet
General Description
AD5445 General Description
The AD5424/AD5433/AD5445 are CMOS 8-, 10- and 12-bit current output digital-to-analog converters (DACs) respectively.
These devices operate from a +2.5 V to 5.5 V power supply, making them
AD5445 Maximum Ratings
| Resolution (Bits) | 12bit |
| DAC Update Rate | 20.4MSPS |
| DAC Settling Time | 80ns |
| # DAC Outputs | 1 |
| DAC Type | Current Out |
| DAC Input Format | Par |
| Output FSR | (-Vref),(Bip Vref),(Uni Vref),User Def. Range/Offset |
| Ref Int/Ext | Ext |
| Supply Vnom | Single(+2.7),Single(+3),Single(+3.3),Single(+5) |
| Pwr Diss (Max) | 3W |
| Package | CSP,SOP |

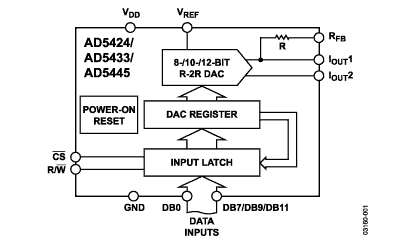

AD5445 Connection Diagram
AD5445
PDF/DataSheet Download
- Datasheet: AD5445
- File Size: 881474 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
