Purchase AD5453, In-stock AD5453 From SeekIC.
MFG:ADI D/C:09
Part Number: AD5453
MFG: ADI
D/C: 09
Description: The AD5453 is a CMOS 14-bit Current Output digital-to-analog converter. This device operates from a +2.5 V to 5.5 V power supply, makin...
- Table of contents:
AD5453
-
Suppliers
DataSheet
General Description
AD5453 General Description
The AD5453 is a CMOS 14-bit Current Output digital-to-analog converter. This device operates from a +2.5 V to 5.5 V power supply, making it suited to battery powered applications and many other
AD5453 Maximum Ratings
| Resolution (Bits) | 14bit |
| DAC Update Rate | 2.7MSPS |
| DAC Settling Time | 180ns |
| # DAC Outputs | 1 |
| DAC Type | Current Out |
| DAC Input Format | Ser,SPI |
| Output FSR | (-Vref),(Bip Vref),(Uni Vref),User Def. Range/Offset |
| Ref Int/Ext | Ext |
| Supply Vnom | Single(+2.5),Single(+2.7),Single(+3),Single(+3.3),Single(+5) |
| Package | SOP,SOT |

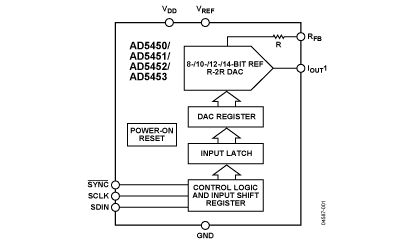

AD5453 Connection Diagram
AD5453
PDF/DataSheet Download
- Datasheet: AD5453
- File Size: 128870 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
