Purchase AD5520, In-stock AD5520 From SeekIC.
MFG:ADI D/C:09
Part Number: AD5520
MFG: ADI
D/C: 09
Description: The AD5520 is a single channel per pin parametric measure-ment unit (PPMU) for use in semiconductor automatic test equi...
- Table of contents:
AD5520
-
Suppliers
DataSheet
General Description
AD5520 General Description
The AD5520 is a single channel per pin parametric measure-ment unit (PPMU) for use in semiconductor automatic test equipment. The part is also suited for use as a source measurement unit for instrumentation applications. It contains programmable modes to force a pin voltage and measure the corresponding current or force a current and measure the voltage. The AD5520 can force/measure over a±11 V range or currents up to ±4 mA with its on-board force
amplifier. An external amplifier is required for wider current ranges. The device provides a force sense capability toensure accuracy at the tester pin. A guard output is also available to drive the shield of a force/sense pair. The AD5520 is available in a 64-lead LQFP package.
AD5520 Maximum Ratings
AVCC to AVEE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... 34 V
AVCC to AGND . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V, +17 V
AVEE to AGND . . . . . . . . . . . . . . . . . . . . . . . . . .+0.3 V, 17 V
DVDD ..............................................................0.3 V to +6 V
Digital Inputs to DGND . . . . . . . . .... . 0.3 V to DVDD+ 0.3 V
Analog Inputs to AGND . . . ..... . AVCC + 0.3 V to AVEE 0.3 V
CLH to CLL......................................................0.3 V to +34 V
CPH to CPL.....................................................0.3 V to +34 V
REFGND, DGND . . . . . . . . . ..........AVCC+ 0.3 V to AVEE 0.3 V
AVCC to AGND . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V, +17 V
AVEE to AGND . . . . . . . . . . . . . . . . . . . . . . . . . .+0.3 V, 17 V
DVDD ..............................................................0.3 V to +6 V
Digital Inputs to DGND . . . . . . . . .... . 0.3 V to DVDD+ 0.3 V
Analog Inputs to AGND . . . ..... . AVCC + 0.3 V to AVEE 0.3 V
CLH to CLL......................................................0.3 V to +34 V
CPH to CPL.....................................................0.3 V to +34 V
REFGND, DGND . . . . . . . . . ..........AVCC+ 0.3 V to AVEE 0.3 V
AD5520 Features
Force/Measure Functions
Force Voltage/Current, Measure Current/Voltage
Force Current/Voltage, Measure Current/Voltage
Force/Measure Voltage Range ±11 V
4 Programmable Force/Measure Current Ranges
Extended Current Ranges
Clamp Circuitry and Window Comparators On Board
Guard Amplifier
64-Lead LQFP Package
Force Voltage/Current, Measure Current/Voltage
Force Current/Voltage, Measure Current/Voltage
Force/Measure Voltage Range ±11 V
4 Programmable Force/Measure Current Ranges
Extended Current Ranges
Clamp Circuitry and Window Comparators On Board
Guard Amplifier
64-Lead LQFP Package
AD5520 Typical Application
Automatic Test Equipment
Per Pin PMU, Shared Pin PMU, Device Power Supply Instrumentation
Source Measure, Parametric Measurement, Precision Measurement
Per Pin PMU, Shared Pin PMU, Device Power Supply Instrumentation
Source Measure, Parametric Measurement, Precision Measurement

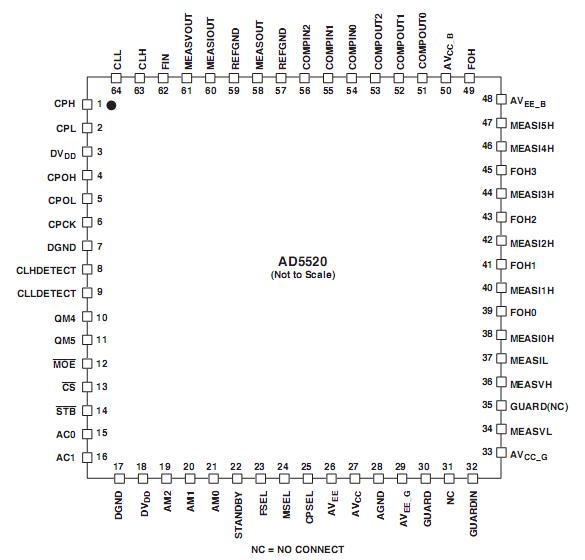

AD5520 Connection Diagram
AD5520
