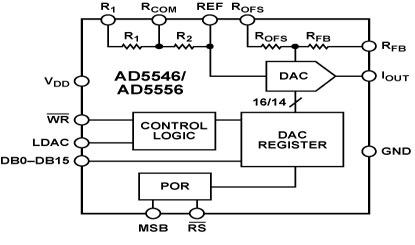

AD5546

V_DD to GND.............................................. 0.3 V, +8 V
R_FB, R_OFS, R₁, R_COM, and REF to GND........ 18 V, 18 V
Logic Inputs to GND .................................0.3 V, +8 V
V(I_OUT) to GND ..............................0.3 V, V_DD + 0.3 V
Input Current to Any Pin except Supplies ........±50 mA
Thermal Resistance (_JA).................................. 128°C
Maximum Junction Temperature (T_J MAX).......... 150°C
Operating Temperature Range.......40°C to +125°C
Storage Temperature Range..........65°C to +150°C
Lead Temperature:
Vapor Phase, 60 s..............................................215°C
Infrared, 15 s.....................................................220°C
Package Power Dissipation...............(T_J MAX T_A)/_JA

Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those listed in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
