Description: The AD5763 is a Dual, 16-bit, serial input, bipolar voltage output digital-to-analog converter that op...


Description: The AD5763 is a Dual, 16-bit, serial input, bipolar voltage output digital-to-analog converter that op...
The AD5763 is a Dual, 16-bit, serial input, bipolar voltage output digital-to-analog converter that operates from supply voltages of ±4.75 V up to ±5.25 V. Nominal full-scale output range is ±4.096 V. The AD5763 provides integrated output amplifiers, reference buffers and proprietary power-up/powerdown control circuitry. The part also features a digital I/O port, which is programmed via the serial interface. The parts incorporate digital offset and gain adjust registers per channel.
The AD5763 is a high performance converter that offers guaranteed monotonicity, integral nonlinearity (INL) of ±1 LSB, low noise, and 10 µs settling time. During power-up (when the supply voltages are changing), the outputs are clamped to 0 V via a low impedance path.
The AD5763 uses a serial interface that operates at clock rates of up to 30 MHz and is compatible with DSP and microcontroller interface standards. Double buffering allows the simultaneous updating of all DACs. The input coding is programmable to either twos complement or offset binary formats. The asynchronous clear function clears all DAC registers to either bipolar zero or zero scale depending on the coding used.

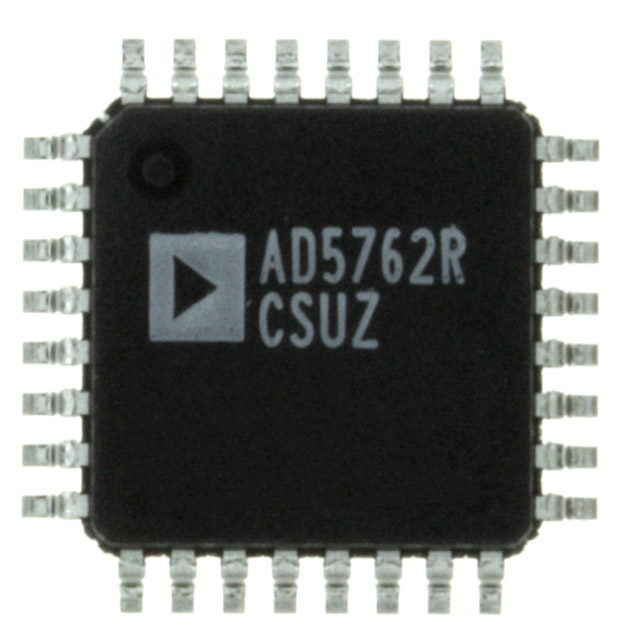

The AD5763 is ideal for both closed-loop servo control and open-loop control applications. The AD5763 is available in a 32-lead TQFP, and offers guaranteed specifications over the −40°C to +105°C industrial temperature range. See Figure 1, the functional block diagram.
| Parameter | Rating |
| AVDD to AGNDX, DGND AVSS to AGNDX, DGND DVCC to DGND Digital Inputs to DGND |
−0.3 V to +17 V +0.3 V to −17 V −0.3 V to +7 V −0.3 V to DVCC + 0.3 V or 7 V (whichever is less) |
| Digital Outputs to DGND REFA, REFB to AGNDX, PGND VOUTA, VOUTB, VOUTC, VOUTD to AGNDX AGNDX to DGND |
−0.3 V to DVCC + 0.3 V −0.3 V to AVDD + 0.3V AVSS to AVDD −0.3 V to +0.3 V |
| Operating Temperature Range (TA) Industrial Storage Temperature Range Junction Temperature (TJ max) Power Dissipation 32-Lead TQFP JA Thermal Impedance JC Thermal Impedance Lead Temperature Soldering |
−40 to +105 −65 to +150 150 (TJ max TA)/ JA 65/W 12/W JEDEC Industry Standard J-STD-020 |
