Purchase AD5930, In-stock AD5930 From SeekIC.
MFG:ADI D/C:09
Part Number: AD5930
MFG: ADI
D/C: 09
Description: The AD5930 is a waveform generator with programmable frequency sweep and output burst capability. Utilizing embedded digital processing...
- Table of contents:
AD5930
-
Suppliers
DataSheet
General Description
AD5930 General Description
The AD5930 is a waveform generator with programmable frequency sweep and output burst capability. Utilizing embedded digital processing allowing enhanced frequency control the device generates
AD5930 Maximum Ratings
| Compliance Range (V) | 0.8V |
| FS Iout (mA nom) | 3.1mA |
| I Supply total (max) | 8mA |
| I/O Interface | Serial |
| Master fclk | 50MHz |
| Nominal Supply (V) | Single(+2.3 to +5.5) |
| On-Board Comparator | No |
| REFCLK Multiplier | No |
| Resolution (Bits) | 10bit |

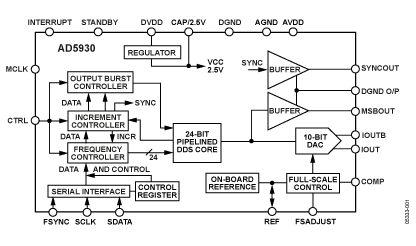

AD5930 Connection Diagram
AD5930
PDF/DataSheet Download
- Datasheet: AD5930
- File Size: 1736704 KB
- Manufacturer: AD
- Click here to Download
