Part Number: AD6392
MFG: AD
Description: AD6392 is a 4-CH BTL driver suitable for driving motors and actuators in CD-P/VCD-P systems. Each chan...
- Table of contents:
AD6392
-
Suppliers
DataSheet
General Description
AD6392 General Description
AD6392 is a 4-CH BTL driver suitable for driving motors and actuators in CD-P/VCD-P systems. Each channel drivers except the spindle driver have an internal primary filter and they can be directly connected to the servo's PWM output without any attached external components.
AD6392 Maximum Ratings
| CHARACTERISTICS | SYMBOL | VALUE | UNIT |
| Maximum supply voltage | VCCmax | 18 | V |
| Power dissipation 1 (375A_Type) | Pd 1 | 1.7 * | W |
| Power dissipation 2 (375B_Type) | Pd 2 | 2.3 * | W |
| Operating temperature | Topr | -35 ~ +85 | OC |
| Storage temperature | Tstg | -55 ~ 150 | OC |
AD6392 Features
- 3-CH BTL driver compatible with PWM input (PWM input is filtered by an internal primary filter, so there is no need to attach external components)
- 1-CH BTL spindle driver with analog input
- Built-in TSD (thermal shut down) circuit.
- Built-in mute circuit.
- Operating supply voltage (4.5V~13.2V).
- 1-CH BTL spindle driver with analog input
- Built-in TSD (thermal shut down) circuit.
- Built-in mute circuit.
- Operating supply voltage (4.5V~13.2V).

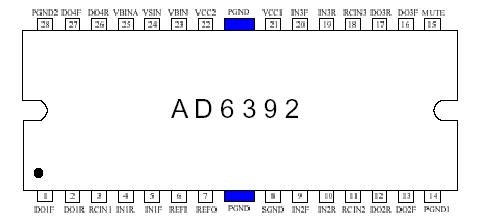

AD6392 Connection Diagram
AD6392
PDF/DataSheet Download
- Datasheet: AD6392
- File Size: 574845 KB
- Manufacturer: Interpion
- Click here to Download
