Purchase AD640, In-stock AD640 From SeekIC.
MFG:ADI D/C:09
Part Number: AD640
MFG: ADI
D/C: 09
Description: The AD640 is a complete monolithic logarithmic amplifier. A single AD640 provides up to 50 dB of dynamic range for frequencies from dc ...
- Table of contents:
AD640
-
Suppliers
DataSheet
General Description
AD640 General Description
The AD640 is a complete monolithic logarithmic amplifier. A single AD640 provides up to 50 dB of dynamic range for frequencies from dc to 120 MHz. Two AD640s in cascade can provide up to 95 dB of
AD640 Maximum Ratings
| Dynamic Range (dB) | 50dB |
| Temp Stability (dB) | ±1dB |
| Phase Accuracy (deg) | n/a |
| Response Time (ns typ) | 10ns |
| Voltage Supply (V) | +/- 4.5 to +/- 7.5 |
| Supply Current | 44mA |
| Limiter Output | Yes |
| AC Linearity (± dB) | 3dB |
| Power Consumption (mW) | 200mW |
| Package | 20-Lead DIP,20-Lead LCC,20-Lead PLCC |

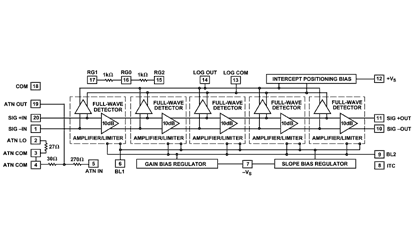

AD640 Connection Diagram
AD640
PDF/DataSheet Download
- Datasheet: AD640
- File Size: 284682 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
