Purchase AD640*, In-stock AD640* From SeekIC.
Part Number: AD640*
Description: The AD640 is a complete monolithic logarithmic amplifier. A single AD640 provides up to 50 dB of dynamic range for freq...
- Table of contents:
AD640*
-
Suppliers
DataSheet
General Description
AD640* General Description
The AD640 is a complete monolithic logarithmic amplifier. A single AD640 provides up to 50 dB of dynamic range for frequencies from dc to 120 MHz. Two AD640s in cascade can provide up to 95 dB of dynamic range at reduced bandwidth. The AD640 uses a successive detection scheme to provide an output current proportional to the logarithm of the input voltage. It is laser calibrated to close tolerances and maintains high accuracy over the full military temperature range using supply voltages from ±4.5 V to ±7.5 V.
The AD640 comprises five cascaded dc-coupled amplifier/limiter stages, each having a small signal voltage gain of 10 dB and a 3 dB bandwidth of 350 MHz. Each stage has an associated full-wave detector, whose output current depends on the absolute value of its input voltage. The five outputs are summed to provide the video output (when low-pass filtered) scaled at 1 mA per decade (50 µA per dB). On chip resistors can be used to convert this output current to a voltage with several convenient slope options. A balanced signal output at +50 dB (referred to input) is provided to operate AD640s in cascade.
The logarithmic response is absolutely calibrated to within ±1 dB for dc or square wave inputs from ±0.75 mV to ±200 mV, with an intercept (logarithmic offset) at 1 mV dc. An integral X10 attenuator provides an alternative input range of ±7.5 mV to ±2 V dc. Scaling is also guaranteed for sinusoidal inputs.
The AD640B is specified for the industrial temperature range of 40°C to +85°C and the AD640T, available processed to MIL- STD-883B, for the military range of 55°C to +125°C. Both are available in 20-lead side-brazed ceramic DIPs or leadless chip carriers (LCC). The AD640J is specified for the commercial
temperature range of 0°C to +70°C, and is available in both 20-lead plastic DIP (N) and PLCC (P) packages. This device is now available to Standard Military Drawing (DESC) number 5962-9095501MRA and 5962-9095501M2A.
AD640* Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±7.5 V
Input Voltage (Pin 1 or Pin 20 to COM) . . . . 3 V to +300 mV
Attenuator Input Voltage (Pin 5 to Pin 3/4) . . . . . . . . . . . ±4 V
Storage Temperature Range D, E . . . . . . . . . 65°C to +150°C
Storage Temperature Range N, P . . . . . . . . . 65°C to +125°C
Ambient Temperature Range, Rated Performance
Industrial, AD640B . . . . . . . . . . . . . . . . . . . 40°C to +85°C
Military, AD640T . . . . . . . . . . . . . . . . . . . 55°C to +125°C
Commercial, AD640J . . . . . . . . . . . . . . . . . . . 0°C to +70°C
Lead Temperature Range (Soldering 60 sec) . . . . . . . .+300°C
Input Voltage (Pin 1 or Pin 20 to COM) . . . . 3 V to +300 mV
Attenuator Input Voltage (Pin 5 to Pin 3/4) . . . . . . . . . . . ±4 V
Storage Temperature Range D, E . . . . . . . . . 65°C to +150°C
Storage Temperature Range N, P . . . . . . . . . 65°C to +125°C
Ambient Temperature Range, Rated Performance
Industrial, AD640B . . . . . . . . . . . . . . . . . . . 40°C to +85°C
Military, AD640T . . . . . . . . . . . . . . . . . . . 55°C to +125°C
Commercial, AD640J . . . . . . . . . . . . . . . . . . . 0°C to +70°C
Lead Temperature Range (Soldering 60 sec) . . . . . . . .+300°C
AD640* Features
Complete, Fully Calibrated Monolithic System Five Stages, Each Having 10 dB Gain, 350 MHz BW Direct Coupled Fully Differential Signal Path Logarithmic Slope, Intercept and AC Response are Stable Over Full Military Temperature Range Dual Polarity Current Outputs Scaled 1 mA/Decade Voltage Slope Options (1 V/Decade, 100 mV/dB, etc.) Low Power Operation (Typically 220 mW at 65 V) Low Cost Plastic Packages Also Available
AD640* Typical Application
Radar, Sonar, Ultrasonic and Audio Systems
Precision Instrumentation from DC to 120 MHz
Power Measurement with Absolute Calibration
Wide Range High Accuracy Signal Compression
Alternative to Discrete and Hybrid IF Strips
Replaces Several Discrete Log Amp ICs
Precision Instrumentation from DC to 120 MHz
Power Measurement with Absolute Calibration
Wide Range High Accuracy Signal Compression
Alternative to Discrete and Hybrid IF Strips
Replaces Several Discrete Log Amp ICs

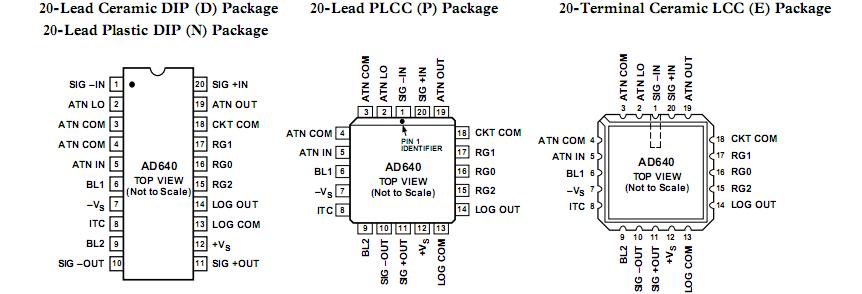

AD640* Connection Diagram
