Purchase AD706, In-stock AD706 From SeekIC.
MFG:ADI D/C:09
Part Number: AD706
MFG: ADI
D/C: 09
Description: The AD706 is a dual, low power, bipolar op amp that has the low input bias current of a BiFET amplifier, but which offe...
- Table of contents:
AD706
-
Suppliers
DataSheet
General Description
AD706 General Description
The AD706 is a dual, low power, bipolar op amp that has the low input bias current of a BiFET amplifier, but which offers a significantly lower IB drift over temperature. It utilizes superbeta bipolar input transistors to achieve picoampere input bias current levels (similar to FET input amplifiers at room tempera- ture), while its IB typically only increases by 5* at 125°C (unlike a BiFET amp, for which IB doubles every 10°C for a 1000* increase at 125°C). The AD706 also achieves the microvolt offset voltage and low noise characteristics of a precision bipolar input amplifier.
Since it has only 1/20 the input bias current of an OP07, the AD706 does not require the commonly used "balancing" resis- tor. Furthermore, the current noise is 1/5 that of the OP07, which makes this amplifier usable with much higher source impedances. At 1/6 the supply current (per amplifier) of the OP07, the AD706 is better suited for today's higher density boards.The AD706 is an excellent choice for use in low frequency active filters in 12- and 14-bit data acquisition systems, in precision instrumentation and as a high quality integrator. The AD706 is internally compensated for unity gain and is available
in five performance grades. The AD706J and AD706K are rated over the commercial temperature range of 0°C to +70°C. The AD706A and AD706B are rated over the industrial temperature range of 40°C to +85°C.
AD706 Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±18 V
Internal Power Dissipation
(Total: Both Amplifiers)2. . . . . . . . . . . . . . . . . . . . 650 mW
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±VS
Differential Input Voltage3 . . . . . . . . . . . . . . . . . . +0.7 Volts
Output Short Circuit Duration . . . . . . . . . . . . . . . Indefinite
Storage Temperature Range (Q) . . . . . . . 65°C to +150°C
Storage Temperature Range (N, R) . . . . . 65°C to +125°C
Operating Temperature Range
AD706J/K . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to +70°C
AD706A/B . . . . . . . . . . . . . . . . . . . . . . . . . 40°C to +85°C
Lead Temperature (Soldering 10 secs) . . . . . . . . . .+300°C
Internal Power Dissipation
(Total: Both Amplifiers)2. . . . . . . . . . . . . . . . . . . . 650 mW
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±VS
Differential Input Voltage3 . . . . . . . . . . . . . . . . . . +0.7 Volts
Output Short Circuit Duration . . . . . . . . . . . . . . . Indefinite
Storage Temperature Range (Q) . . . . . . . 65°C to +150°C
Storage Temperature Range (N, R) . . . . . 65°C to +125°C
Operating Temperature Range
AD706J/K . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to +70°C
AD706A/B . . . . . . . . . . . . . . . . . . . . . . . . . 40°C to +85°C
Lead Temperature (Soldering 10 secs) . . . . . . . . . .+300°C
AD706 Features
Available in 8-Lead Plastic Mini-DlP, Hermetic Cerdip and Surface Mount (SOIC) Packages
Available in Tape and Reel in Accordance with EIA-481A Standard
Single Version: AD705, Quad Version: AD704
Available in Tape and Reel in Accordance with EIA-481A Standard
Single Version: AD705, Quad Version: AD704
AD706 Typical Application
Low Frequency Active Filters
Precision Instrumentation
Precision Integrators
Precision Instrumentation
Precision Integrators

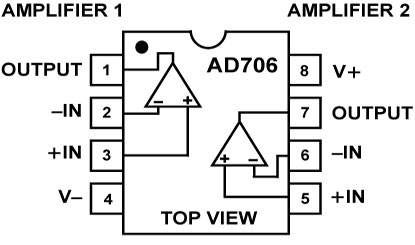

AD706 Connection Diagram
AD706
PDF/DataSheet Download
- Datasheet: AD706
- File Size: 252104 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
