Part Number: AD708
MFG: ADI
D/C: 09
Description: The AD708 is a very high precision, dual monolithic operational amplifier. Each amplifier individually offers exc...
- Table of contents:
AD708
-
Suppliers
DataSheet
General Description
AD708 General Description
The AD708 is a very high precision, dual monolithic operational amplifier. Each amplifier individually offers excellent dc precision with the best available max offset voltage and offset voltage drift of any dual bipolar op amp. In addition, the matching specifications are the best available in any dual op amp. The AD708 sets a new standards for dual precision op amps by providing 5 V/µV min open loop gain and guaranteed max input voltage noise of 350 nV p-p (0.1 Hz to 10 Hz). All dc specifications show excellent stability over temperature, with offset voltage drift typically 0.1 µV/°C and input bias current drift of 25 pA/°C max. Both CMRR (130 dB min) and PSRR (120 dB min) are an order of magnitude improved over any available single monolithic op amp except the AD707.
The AD708 is available in four performance grades. The AD708J is rated over the commercial temperature range of 0°C to +70°C and jis available in a plastic mini-DIP package. The AD708A and AD708B are rated over the industrial temperature range of 40°C to +85°C and are available in a cerdip and TO- 99 package. The AD708S is rated over the military temperature range of 55°C to +125°C and is available in cerdip and TO-99 packages. Military versions are available processed to MIL-STD-883B, Rev. C.
AD708 Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±22 V
Internal Power Dissipation2
Input Voltage3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±VS
Output Short Circuit Duration . . . . . . . . . . . . . . . . Indefinite
Differential Input Voltage . . . . . . . . . . . . . . . . . . +VS and VS
Storage Temperature Range (Q, H) . . . . . . .65°C to +150°C
Storage Temperature Range (N) . . . . . . . . . 65°C to +125°C
Lead Temperature Range (Soldering 60 sec) . . . . . . . +300°C
Internal Power Dissipation2
Input Voltage3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±VS
Output Short Circuit Duration . . . . . . . . . . . . . . . . Indefinite
Differential Input Voltage . . . . . . . . . . . . . . . . . . +VS and VS
Storage Temperature Range (Q, H) . . . . . . .65°C to +150°C
Storage Temperature Range (N) . . . . . . . . . 65°C to +125°C
Lead Temperature Range (Soldering 60 sec) . . . . . . . +300°C
AD708 Features
Very High DC Precision
30 mV max Offset Voltage
0.3 mV/8C max Offset Voltage Drift
0.35 mV p-p max Voltage Noise (0.1 Hz to 10 Hz)
5 Million V/V min Open Loop Gain
130 dB min CMRR
120 dB min PSRR
Matching Characteristics
30 mV max Offset Voltage Match
0.3 mV/8C max Offset Voltage Drift Match
130 dB min CMRR Match
Single Version: AD707
Available in 8-Pin Plastic Mini-DIP,
Hermetic Cerdip and TO-99 Metal Can
Packages, Chips and /883B Parts Available.
30 mV max Offset Voltage
0.3 mV/8C max Offset Voltage Drift
0.35 mV p-p max Voltage Noise (0.1 Hz to 10 Hz)
5 Million V/V min Open Loop Gain
130 dB min CMRR
120 dB min PSRR
Matching Characteristics
30 mV max Offset Voltage Match
0.3 mV/8C max Offset Voltage Drift Match
130 dB min CMRR Match
Single Version: AD707
Available in 8-Pin Plastic Mini-DIP,
Hermetic Cerdip and TO-99 Metal Can
Packages, Chips and /883B Parts Available.

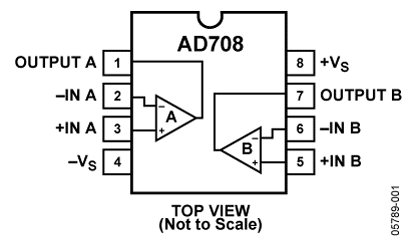

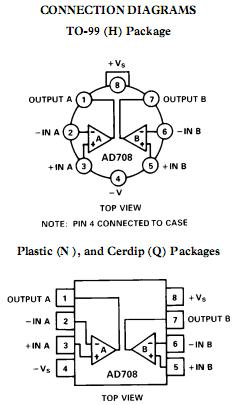

AD708 Connection Diagram
AD708
PDF/DataSheet Download
- Datasheet: AD708
- File Size: 425923 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
