Part Number: AD7228A
Description: The AD7228A contains eight 8-bit voltage-mode digital-to-analog converters, with output buffer amplifiers and interface...
- Table of contents:
AD7228A
-
Suppliers
DataSheet
General Description
AD7228A General Description
The AD7228A contains eight 8-bit voltage-mode digital-to-analog converters, with output buffer amplifiers and interface logic on a single monolithic chip. No external trims are required to achieve full specified performance for the part.
Specified performance is guaranteed for input reference voltages from +2 to +10 V when using dual supplies. The part is also specified for single supply +15 V operation using a reference of +10 V and single supply +5 V operation using a reference of +1.23 V. Each output buffer amplifier is capable of developing
+10 V across a 2 kΩ load. The AD7228A is fabricated on an all ion-implanted, high- speed, Linear Compatible CMOS (LC2 MOS) process which has been specifically developed to integrate high-speed digital logic circuits and precision analog circuits on the same chip.
AD7228A Maximum Ratings
VDD to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V, +17 V
VDD to VSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V, +24 V
Digital Input Voltage to GND . . . . . . . . . . . . . . . 0.3 V, VDD
VREF to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3V, VDD
VOUT to GND2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .VSS, VDD
Power Dissipation (Any Package) to +75°C . . . . . . 1000 mW
Derates above 75°C by . . . . . . . . . . . . . . . . . . . .2.0 mW/°C
Operating Temperature
Commercial . . . . . . . . . . . . . . . . . . . . . . . . 40°C to +85°C
Industrial . . . . . . . . . . . . . . . . . . . . . . . . . . 40°C to +85°C
VDD to VSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V, +24 V
Digital Input Voltage to GND . . . . . . . . . . . . . . . 0.3 V, VDD
VREF to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3V, VDD
VOUT to GND2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .VSS, VDD
Power Dissipation (Any Package) to +75°C . . . . . . 1000 mW
Derates above 75°C by . . . . . . . . . . . . . . . . . . . .2.0 mW/°C
Operating Temperature
Commercial . . . . . . . . . . . . . . . . . . . . . . . . 40°C to +85°C
Industrial . . . . . . . . . . . . . . . . . . . . . . . . . . 40°C to +85°C
AD7228A Features
Eight 8-Bit DACs with Output Amplifiers
Operates with Single +5 V, +12 V or +15 V or Dual Supplies
No User Trims Required
Skinny 24-Pin DlPs, SOIC, and 28-Terminal Surface Mount Packages
Operates with Single +5 V, +12 V or +15 V or Dual Supplies
No User Trims Required
Skinny 24-Pin DlPs, SOIC, and 28-Terminal Surface Mount Packages

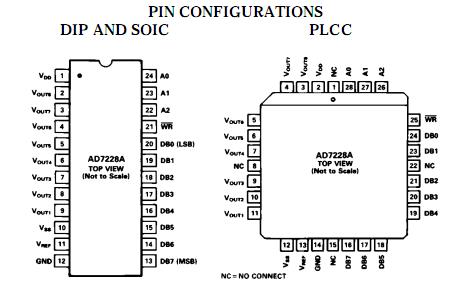

AD7228A Connection Diagram
AD7228A
